This machine has designed with high speed to rewind from jumbo roll to household small roll, the working material as aluminum foil, bakery paper, PVC film, stretch film etc.
Description:
This machine has designed with high speed to rewind from jumbo roll to household small roll, the working material as aluminum foil, bakery paper, PVC film, stretch film etc.
Highlight:
Latest Design, Rock Bottom Price, Top selling:
1. 6 shafts change
2. PLC control & touch screen
3. Rewinding length Min. 1m/roll

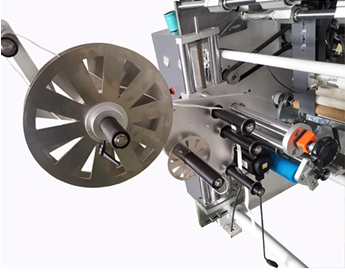

4. Labelling unit for option
5. Also for Baking paper rewinding
From Jumbo roll to Sub roll:

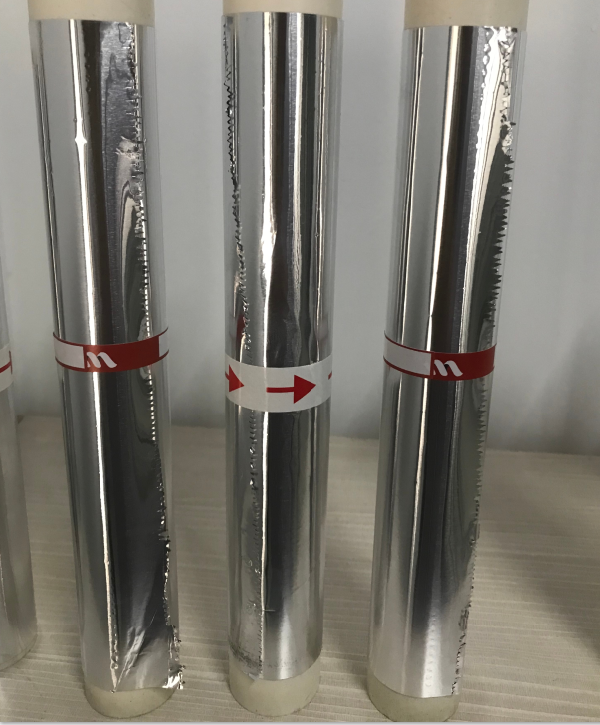

Finished products usage:
Specification:

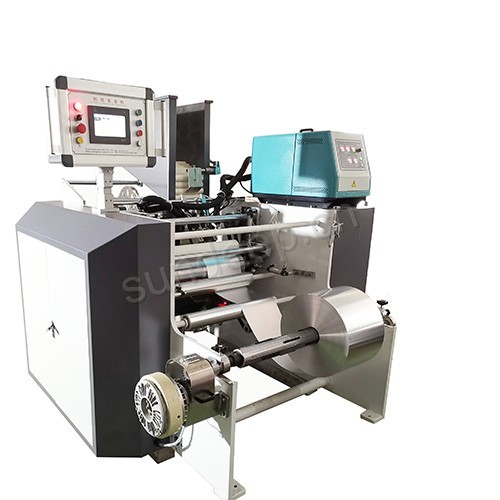

Model number | SDA-500 aluminum foil rewinder (Six shaft auto change)
|
Width of un-winder film | 200-450mm
|
Width of re-winder film | 200-450MM
|
Aluminum foil thickness | 8 micron to 20 micron
|
Diameter of un-winder roll(Max)
| Max. Ф700mm |
Diameter of re-winder roll(Max)
| Max. Ф90mm |
Minimum length of rewind | 1 meter
|
Core size of un-winder
| 3’’ or 6” |
Core size of re-winder
| 30mm,35mm, 38mm ,42mm |
Max. Mechanical Speed | Max 250m/min
|
Main motor | 4kw |
Change motor | Servo motor 750W
|
Labelling motor | motor 550W
|
Rewinding | Motor 1.5kw
|
Hot melt glue machine | China famous brand
|
Unwind and rewind tension | Automatic tension
|
Auto count meter | By encoder
|
Machine weight | 1600kg
|
Machine layout size(LXWXH)
| 3300*1800*2100mm |
Delivery:
