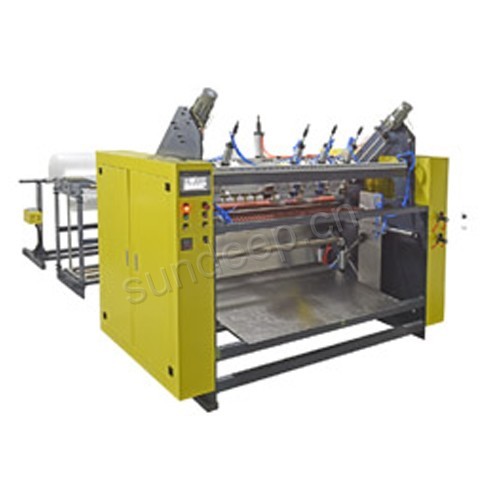

This machine is designed for rewinding jumbo roll of air bubble film into small roll of air bubble film, it can also work with EPE Foam roll . The material can be slitted into different length and width. There is no need paper core in the rewinder roller.
Description:
This machine is designed for rewinding jumbo roll of air bubble film into small roll of air bubble film, it can also work with EPE Foam roll . The material can be slitted into different length and width. There is no need paper core in the rewinder roller.
Specification:
Machine model | SUN1000-APC
| SUN1200-APC
| SUN1600-APC
| ||
Material prepared | Air bubble film(thickness 60-100gsm; adhesive tape (paper tape,max.dia.200mm and max.tape width 30mm)
| ||||
Max.width (mm) | 1000 | 1200 | 1600
| ||
Max.length (mm) | 2-20meters (max diameter 90mm-350mm)
| ||||
Speed (rolls/h) | 40-120 rolls/h (it depends on the length of the finished roll)
| ||||
Tolerance (mm) | 0.5mm
| ||||
Total power (kw) | 3.0kw | 4.0kw | 4.0kw
| ||
Machine weight | 1000kg | 1200kg | 1500kg
| ||
Power supply | 380v/3phase/50hz | ||||
