Description:
This machine is used for stretch cling film rewinding with high speed,the rewinded film is more smooth in superior quality, also it is convenient and popular use for kitchen daily use.
The machine equipped with below parts: rewinding driving part, paper core swing arm part, film-cutting swing arm part, unwinding-arm up & down part, paper core hopper part, meter counting & automatic cutting off device, unloading device part as well as electric control system.

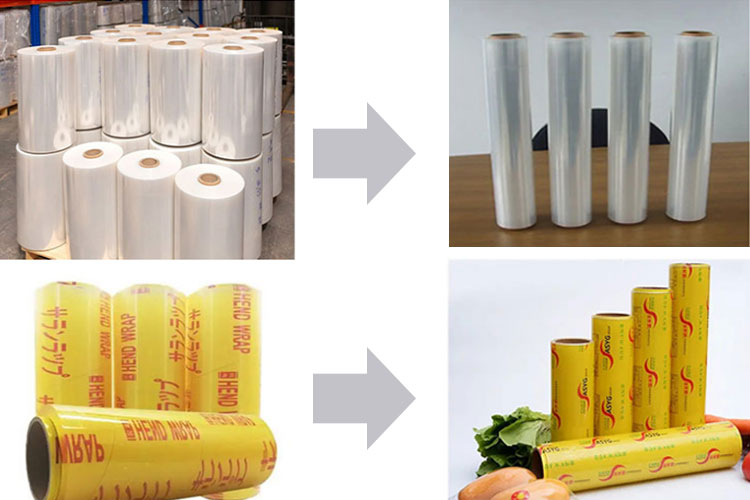

From Jumbo roll to sub roll:

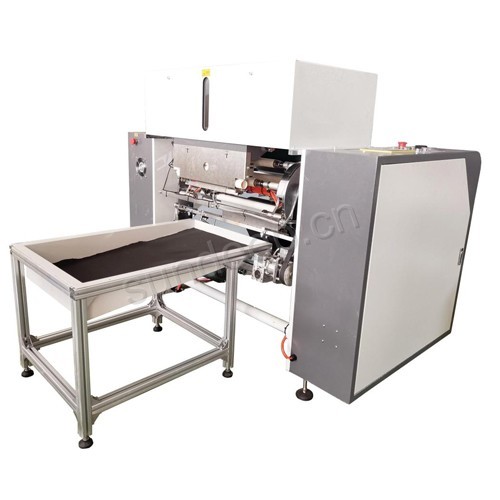

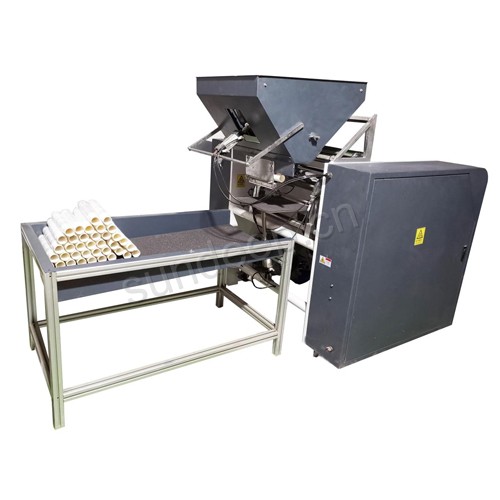

Model SDS-500 rewinder photo:

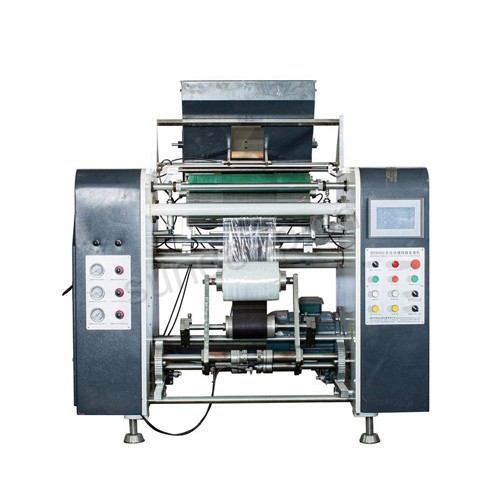

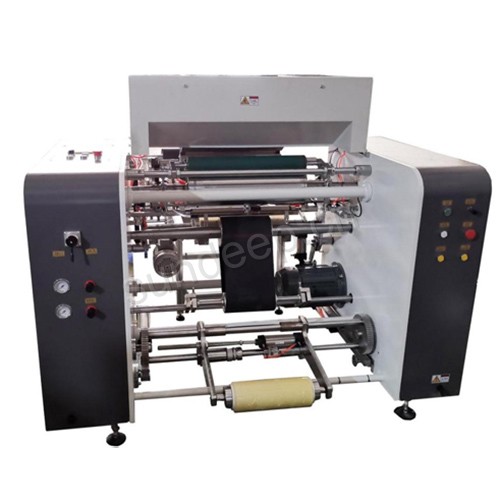

Model SDS-350 (five shafts change) rewinder photo:
Highlight:
1. The Rewinding Machine is with PLC program, Inverter control motor and touch screen for user friendly operation;
2. Machine with fully automatic meter length counting, automatic processing, and automatic cut off for end of rewind roll.
3. This machine is suitable for PE cling film, pallet stretch wrap film, PVC food cling film etc with high speed production;
4. Even Non-skilled operator can work with the machine; one operator can run 2-3 units machines at the same time;
5. Loading and changing paper core, cutting and loading finished products, plus slicing and blanking, all can be finished automatically;
6. Five shafts automatically change without stop.
Finished products usage:
Specification:
Machine model | SDS-500
| SDS-350 five shafts change |
Width of the mother-roll film | MAX. 500mm
| MAX. 330mm
|
Width of sub-roll film | MAX. 500mm
| MAX. 300mm
|
Roll load mode | Automatic | Automatic |
Max. Diameter of mother-roll | 400mm
| 400mm |
Rewind length | 5-1000m
| 5-1000m
|
Diameter of sub-roll (MAX) | 300mm
| Finished roll length max.100m |
Thickness of the film | 0.01-0.05mm
| 0.01-0.03mm
|
Rewinding speed | Max.800m/min
| Max.600m/min
|
Mother-roll core specification | 3”
| 3”
|
Sub-roll core specification | 1”，2”，3”， 30mm, 35mm,38mm
| |
Main motor | 4kw
| 4kw |
Machine size | 1700*1300*1500mm
| 1400*1600*1400mm
|
Machine weight | 850kg | 900kg |
