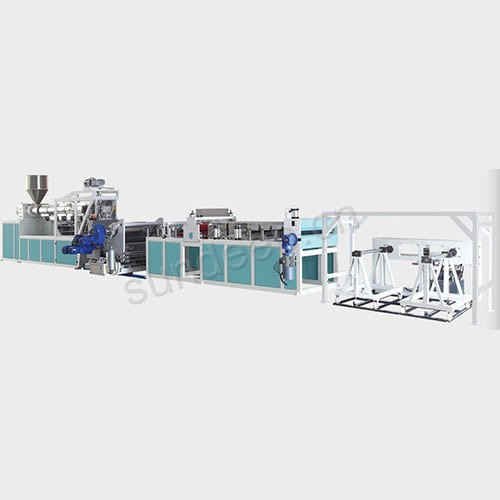

SUND series Plastic Sheet Extruder

This plastic sheet extruder is mainly used to produce plastic sheet of PP, PS and PE, the finished plastic sheet is for making disposable water cups, jelly cups, plastic packing containers, stationery file and so on.

Description:

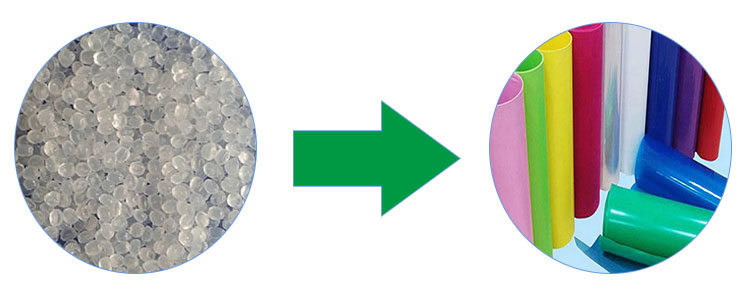

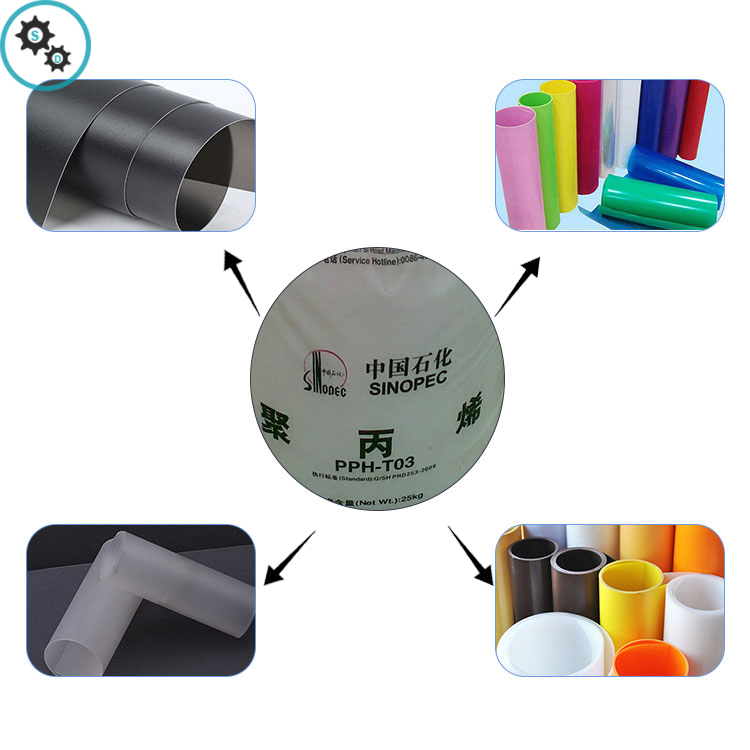

From granule raw material to final product of sheet roll:

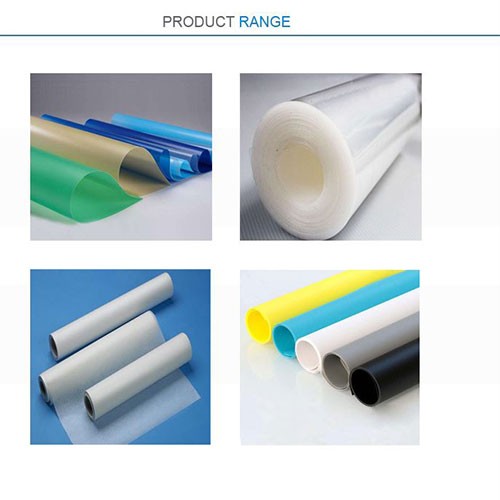

Plastic sheet roll samples:


Highlight:

1. This plastic sheet extruder is composed of extrusion part, filter net changing part, T-die part, 3 rollers part, traction part, winding part and electric control cabinet part.

2. High quality nitrogen treated alloy steel (38CrMoAlA) is adopted to make screws and barrels to ensure perfect hardness, anti-corrosion and long service time etc.

3. In order to ensure uniform thickness and smooth surface of sheets, the flow channel in die head is designed as cloth-hanger style.

4. Water cycle cooling guarantees a good cooling effect.

5. Our plastic sheet extruder machines are with CE certification.

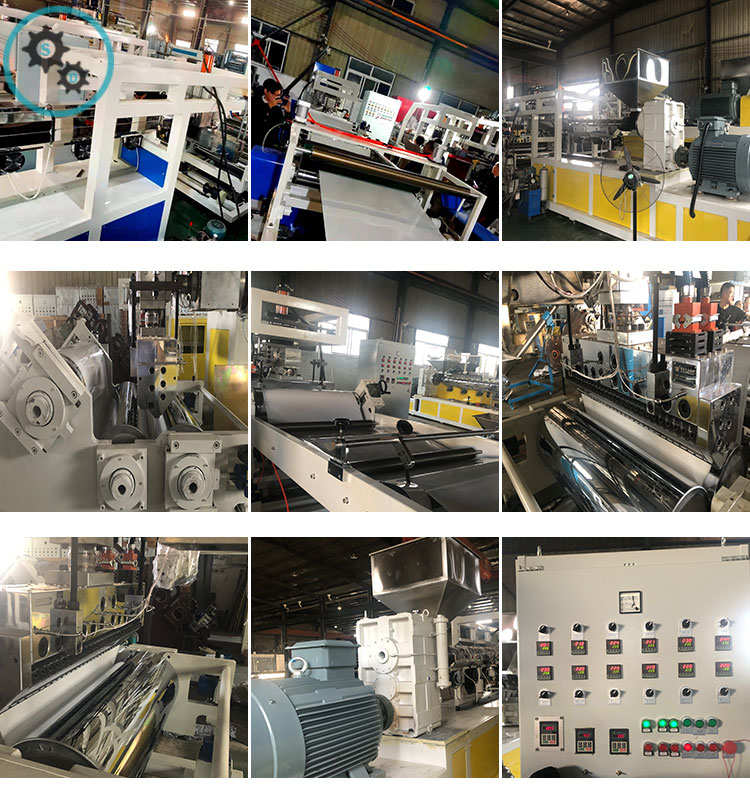

Machine photos collection:

Specifications:

Machine Model	SUND-800/110	SUND-900/115	SUND-900/120
Width of Die Head	800mm	900mm	900mm
Width of Product Sheet	400-700mm	400-780mm	400-780mm
Suitable Material	PP. PS. PE	PP. PS. PE	PP. PS. PE
Thickness of Sheet	PP/PE: 0.3-2.5mm PS:0.2-2mm	PP/PE: 0.3-2.5mm PS:0.2-2mm	PP/PE: 0.3-2.5mm PS:0.2-2mm
Three Roller Size	Φ350800mm3	Φ400900mm3	Φ450900mm3
Screw	Φ110 & 1:32	Φ115 & 1:33	Φ 120 & 1:34
Motor Power	55kw	90kw	110kw
Heating Power	40kw	45kw	50kw
Production Capacity	150-200kg/h	200-250kg/h	250-300kg/h
Water Consumption	50-100L/min	70-100L/min	80-120L/min
Machine Weight	6600kgs	7200kgs	7800kgs
