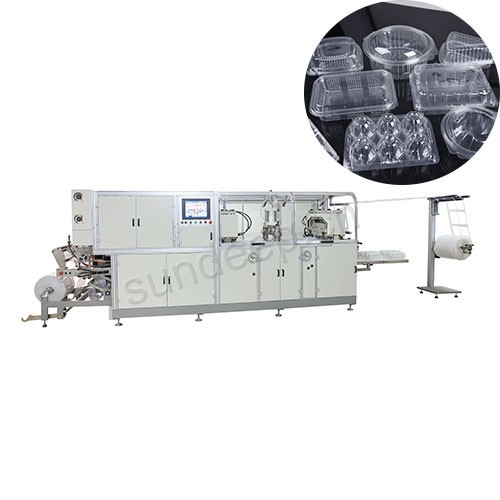

The multi-stations thermoforming machine is launched based on the traditional thermoforming machine, this machine is with more function, can do much more flexible products, such as PLA products, round and square trays, dom lids or containers which has holes, the packing containers with body and cover together (fruit & vegetable box, egg trays), clamshells, nursery trays and plates etc.
Description:
The multi-stations thermoforming machine is launched based on the traditional thermoforming machine, this machine is with more function, can do much more flexible products, such as PLA products, round and square trays, dom lids or containers which has holes, the packing containers with body and cover together (fruit & vegetable box, egg trays), clamshells, nursery trays and plates etc.

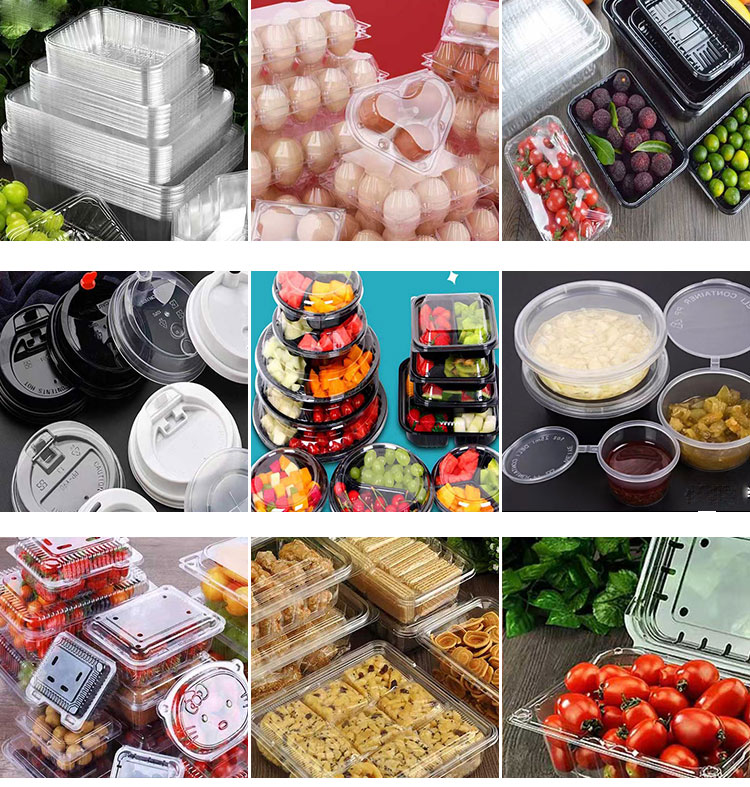

Sample collection:

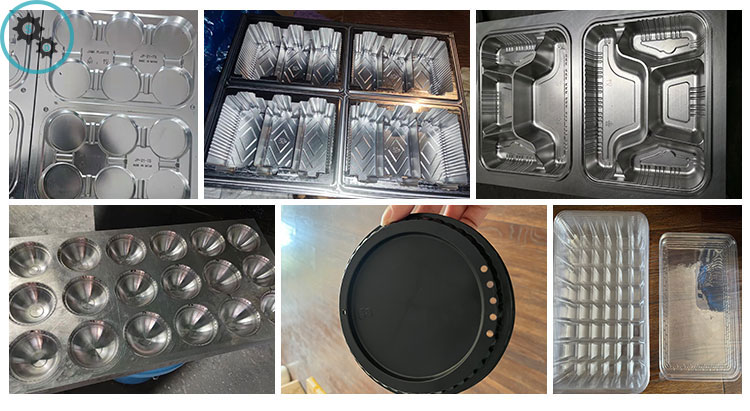

Mould collection:
Highlight:
we have the compact model which is 550*350, means max forming width is 550mm, max.forming length is 350mm, and max.forming depth can reach to 80mm, working speed normal as 20-30 times/min.. The machine is with latest design of fully servo motor driving system, which makes the machine running very stable; Forming, punching and cutting station works independently, with 15 inch touch screen for easier operation.
1. Compact in design/550*350 forming area
2. Stable in running/ servo motor fully control
3. Fast in production/max.50 times/min.
4. Easy in operation/15 inch touch screen
5. Diverse in final products/ tray, container, box,lid available

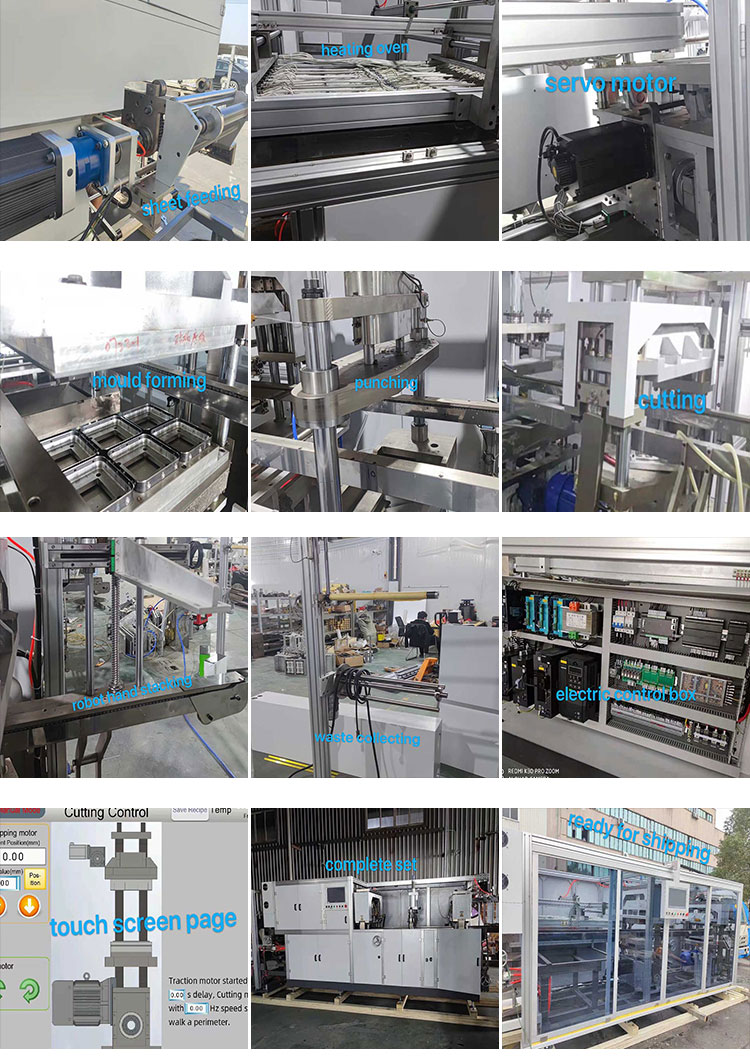

Machine details:
Specification:
Model | SUN-TF550A Three Station SUN-TF550B Four Station (With punching function) | |
Suitable Products | Disposable Plastic lids, clamshell boxes, plates, (egg) trays etc. | |
Suitable Material | PP, PS, PET, PVC, EPS and PLA | |
Max. Forming Width | 550mm | |
Max. Forming Length | 350mm | |
Max. Forming Depth | 80mm | |
Up & Down heating power | 65kw | |
Heating zone | 5 zone | |
Motor power | Forming servo: 5.5kw; punching servo: 3.0kw; cutting motor: 6.5kw; traction servo: 3.0kw; robot hand servo: 1.0kw | |
Sheet Thickness | 0.1mm-1.5mm | |
Max. Width of sheet | 600mm | |
Production Speed | 10-50 Cycles/min | |
Pressure of Water Supply | 0.2MPa | |
Water Consumption | 0.3m3/h (Tap water or Circulating cooling water) | |
Air Exhaust Volume | ≥0.6m3/min | |
Air Pressure | 0.4-0.8MPa | |
Power | 380V/50HZ/86KW (Three-phase and four-wire) | |
Floor space needed | 8700×3600 | |
Machine size | 6000×1800×1900mm | |
Machine Weight | 5800KG | |

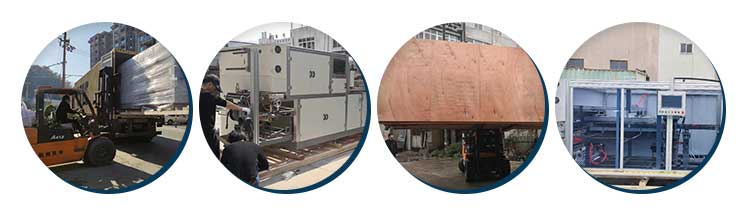

Machine loading photo:
