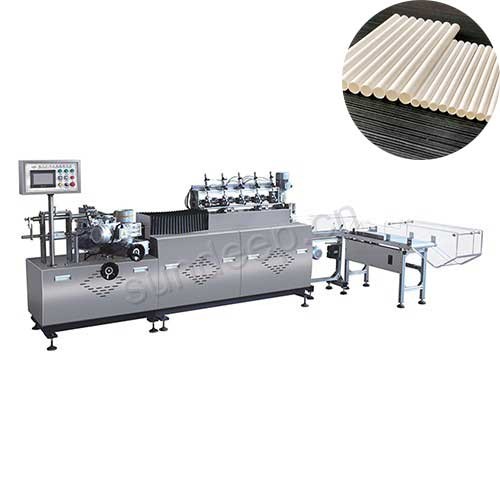

SUND-80 stainless steel high-speed paper straw machine including below parts: paper feeding, gluing, winding, and cutting. It is equipped with a CNC multi-knife cutting system, which can cut finished paper tubes online. It is suitable for producing various types and specifications of paper straws from OD 4.2mm to 13mm, Such as diameter 5mm; 6mm; 8mm; 10mm and so on.
The paper straw making machine can also connect with the individual packing & group packing for perfect inline complete solution.
Description:
SUND-80 stainless steel high-speed paper straw machine including below parts: paper feeding, gluing, winding, and cutting. It is equipped with a CNC multi-knife cutting system, which can cut finished paper tubes online. It is suitable for producing various types and specifications of paper straws from OD 4.2mm to 13mm, Such as diameter 5mm; 6mm; 8mm; 10mm and so on.
The paper straw making machine can also connect with the individual packing & group packing for perfect inline complete solution.
Highlight:
1. The machine is controlled by PLC and equipped with frequency conversion speed regulation, with touch screen, which is simple to set and easy to operate.

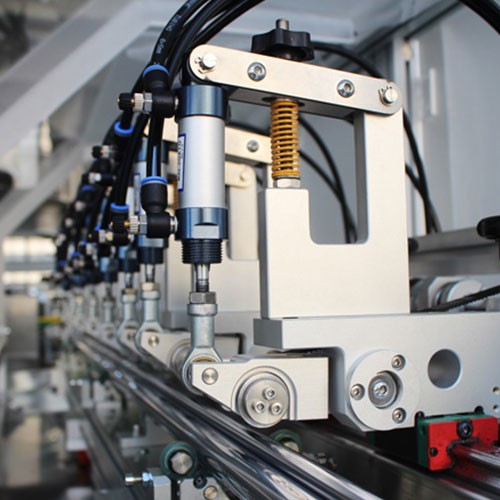

2. The cutting part adopts the servo multi-knife cutting system, and the servo motor tracks the cutting synchronously, which has higher precision, time saving and high efficiency.
3. The main body and main accessories are made of stainless steel to ensure product hygiene and clean.

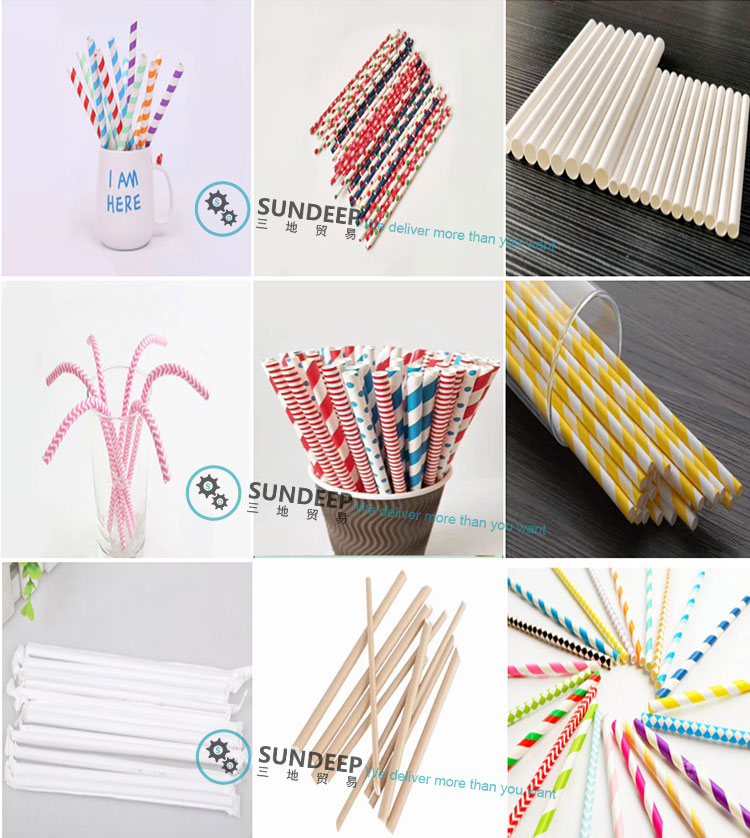

Paper straw samples:
Specification:
Machine model | SUND-80 | SUND-50 |
Paper layer | 4 layers | 3 layers |
Straw Outer Diameter | 4.2-13mm | 4.5-12mm |
Max. Speed | 80 meters/min. | 50 meters/min. |
Stable Speed | 65-75 meters/min. | 30-40 meters/min. |
Cutting System | Multi-blades Cutting (8 pcs online) | Multi-blades Cutting (8 pcs online) |
Cutting system | Servo motor synchronic tracking cut | Servo motor synchronic tracking cut |
Gluing Way | Single & Double sides | Single & Double sides |
Machine & Parts | 304 Stainless Steel | Stainless Steel or painting (option |
Straw Collector | L Type Auto Collector | Optional |
Operator | 1 person | 1 person |
Speed Control | By Inverter | By Inverter |
Paper Reel Stand | 4 Layers Auto Paper Connection | 3 Layers |
Glue Unit | 4 Layers | 3 Layers |
Power | 7kw | 1.5kw*2 |
Working Space | About 8500*5500mm | About 7000*5500mm |
Machine size | 4000*1500*1200mm | 3500*1500*1200mm |
Machine Weight | 2100kgs | 1300kgs |
Power Supply | 380V / 3Phase / 50Hz | 380V / 3Phase / 50Hz |
