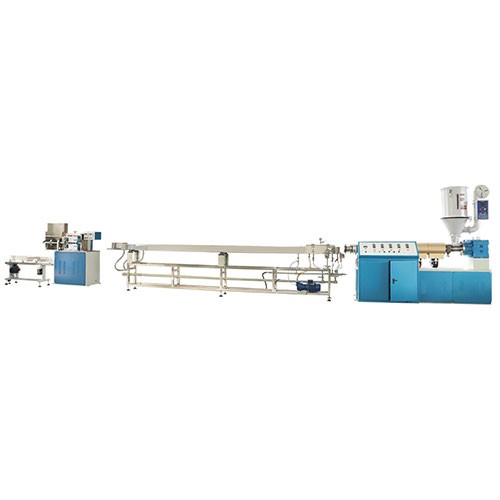

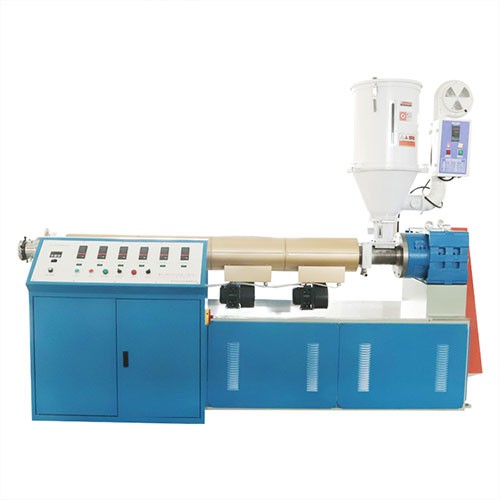

SUND series drinking straw production line

Drinking straws extrusion line uses PP/PLA/Plant Fiber resin as raw materials, (or Mixed with Master batch), with the process of melting, extrusion, shaping, cooling, pulling, cutting, then produce different types drinking straws.
The main components are made of high quality alloy steel. The equipment is characterized with high productivity, simple operation which allows to reduce manual labor, increase the efficiency & profits for manufacturer.

Description:

The main components are made of high quality alloy steel. The equipment is characterized with high productivity, simple operation which allows to reduce manual labor, increase the efficiency & profits for manufacturer.

Highlight:

1. Wide application: Drinking straw, candy bar, pen tube, cotton swab stick, medical tube, all kinds of toys tube, etc.

2. Easy to operate. One operator is enough to run the whole line

3. Cut form: Diverse in cut-end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°

4. High capacity output and wide range of color options. (single, two, three or multi-color stripes, straight or spiral)

Sample collection:

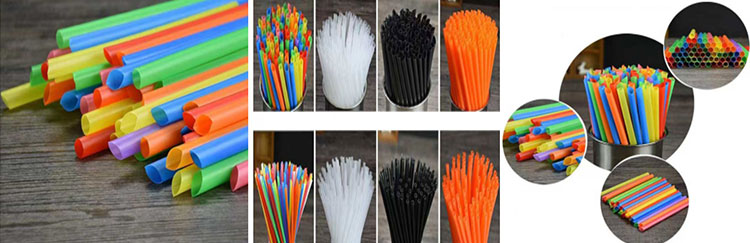

① Single color straw:

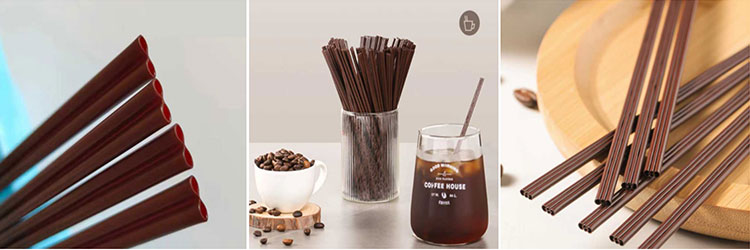

② Coffee stir straw:

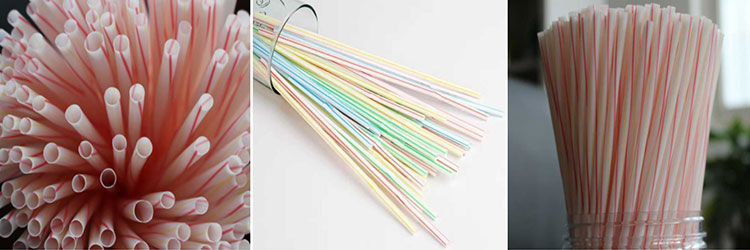

③Classic three color straw:

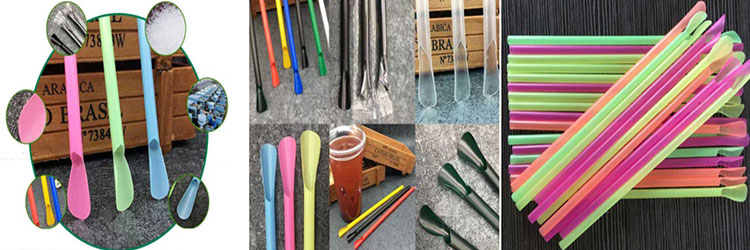

④Spoon shape straw( note: need another machine to make the spoon shape)

Specification:

Machine Model		SUND-011 single color	SUND-012 two color	SUND-013 three color
Screw diameter		50×1	50×1+25×1	50×1+25×2
Power supply	Main screw	7.5kw(VFD)
	Minor screw	/	0.75kw	0.75×2kw
	Heating	7kw	9.56kw	12kw
	Hauling motor	0.75kw(VFD)
	Cutting motor	0.75kw(VFD)
	Total power	16.5kw	20kw	22.5kw
Temperature Controller		5sets	8sets	11sets

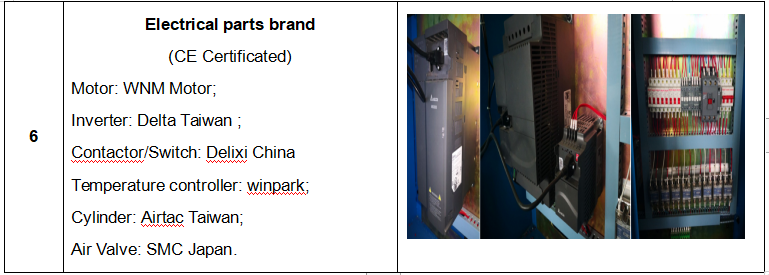

Electric control cabinet		1set	1set	1set
Automatic Counting Device		1set	1set	1set
Way of Hauling		By rubber roller
Way of cutting		Rotatory cutting

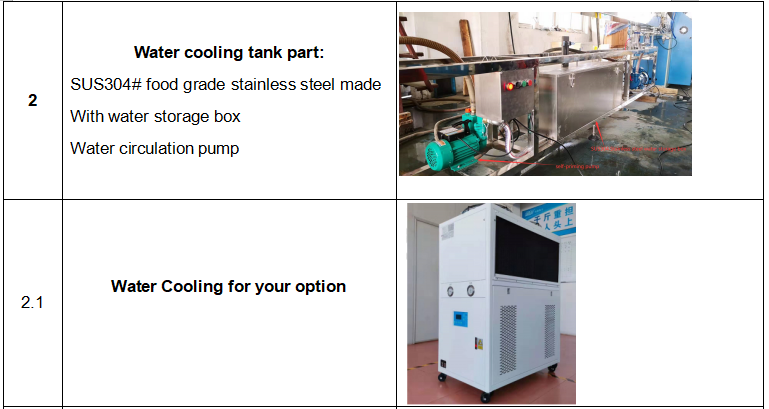

Cooling water tank	3.5m, can be adjusted up & down, left & right, forward & backward.

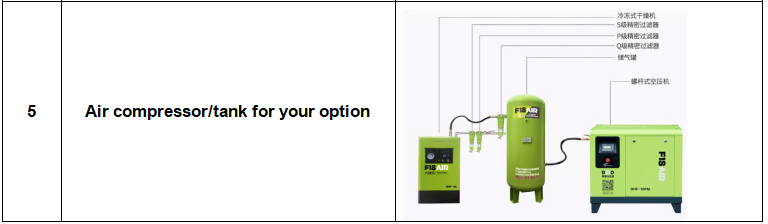

Accessory for Option	Vacuum pump (0.75kw)		Air compressor (2kw)
Specification of Pipe	Material	PP, PE etc.
	Diameter	2mm~13mm
	Length	Customization
	Speed	600~1200pcs/min
	Color	Single	Two	Three
	Straight or spiral strips	√	√	√
	Cutting End	90°/90°,90°/45°,90°/60°,45°/45°,60°/60
Machine size ( L×W×H)		9m×1m×1.7mm	9m×1.5m×1.7m	9m×2m×1.7m
Machine weight		1000KG	1500KG	2000KG
Power supply		380v,3phase,50hz
