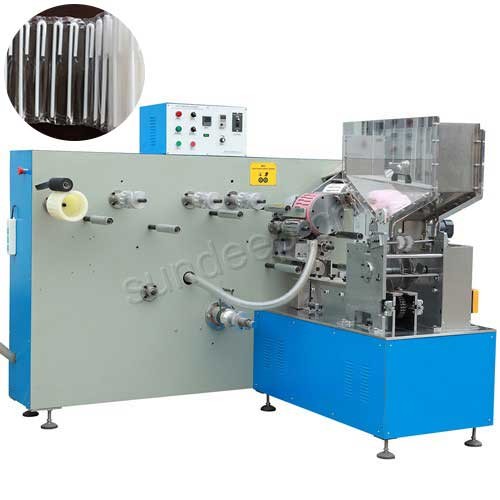

SUND-033 series “U” Shape Straw Packing Machine is for bending flexible straws to “U” shape and pack it in film row-packaging. The machine is composed of a main driving part, working table and stainless steel plate with sealing etc. This machine is mainly applied to do tetra-pak straw packaging.
Description:
SUND-033 series “U” Shape Straw Packing Machine is for bending flexible straws to “U” shape and pack it in film row-packaging. The machine is composed of a main driving part, working table and stainless steel plate with sealing etc. This machine is mainly applied to do tetra-pak straw packaging.
Highlight:
1. Packing of single straw with row and the completion of bending, filling and packing of straws at a time.
2. Automatic counting and batch alarm.
3. Adjustable packing speed.
Specification:
MODEL | SUND-033 U shape straw packing machine |
Straw Diameter | 4.2±0.1mm |
Straw Length | according to customer |
Main Driving Motor | 2.2 kw, 3p, 380V, 50HZ |
Wrapping Material | BOPP Film |
Capacity Max. | 600 pcs/min |
Machine Weight | 1000 kg |
Machine Size | 180 cm (L) 170cm (W) 170 cm (H) |
Power supply | 380v/3pahse/50hz |
Main parts in details:

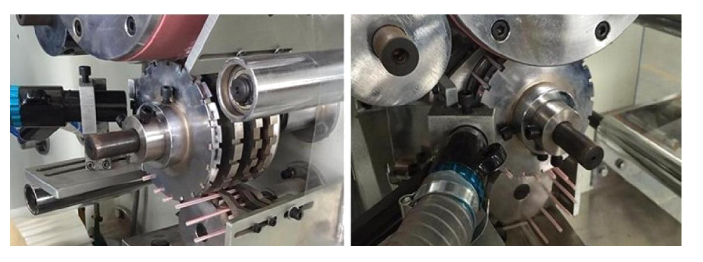

1) Straw feeding and folding part.
2) The machine can perform feeding and folding with one part, it can feed the straight straw, then the device will folding them into U shape.

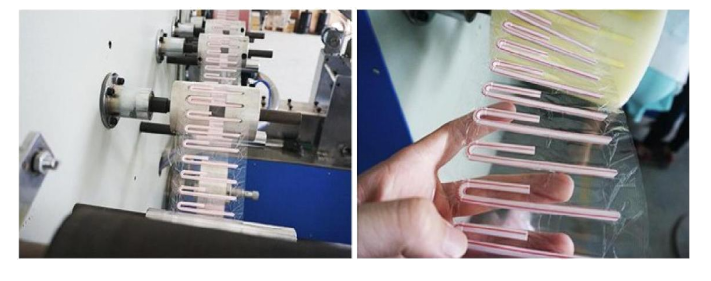

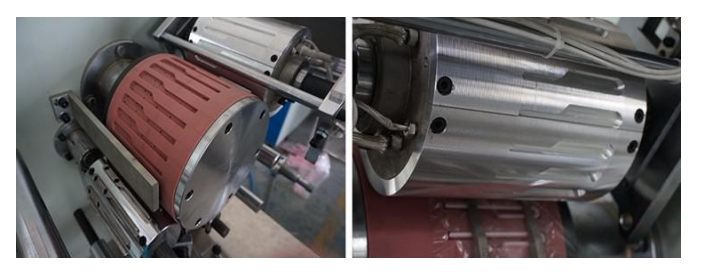

3) Sealing wrapping mechanism:
The mechanism performs waste suction, pressing and sealing operations with High quality Aluminum forming roller.

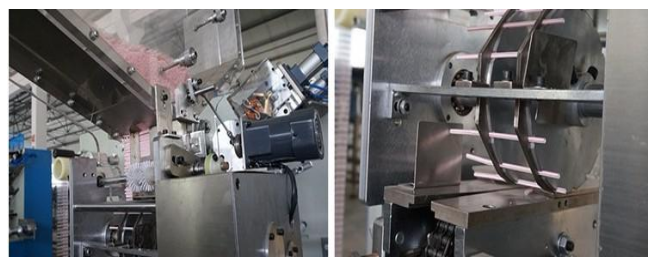

4)sharp end cutting mechanism:
The machine can perform sharp end cutting on the straw without an additional machine, this allows sharp ends of straw to war in the same direction.
5)end finished products inline:
