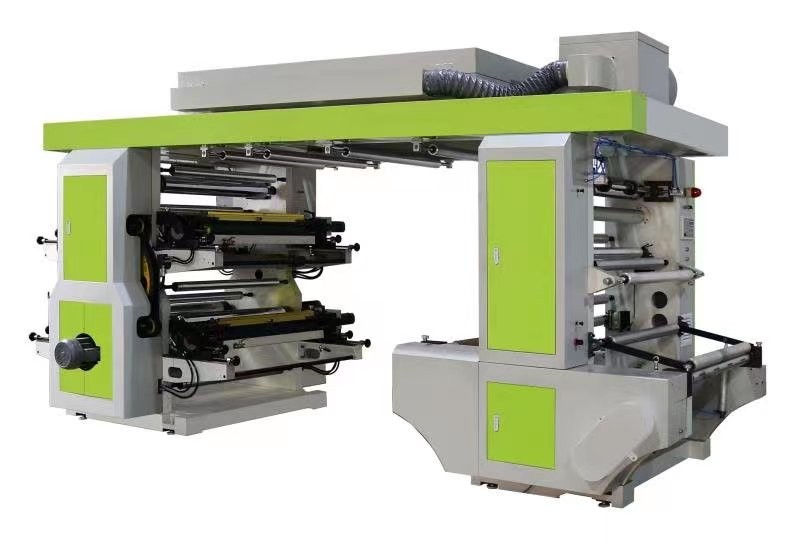

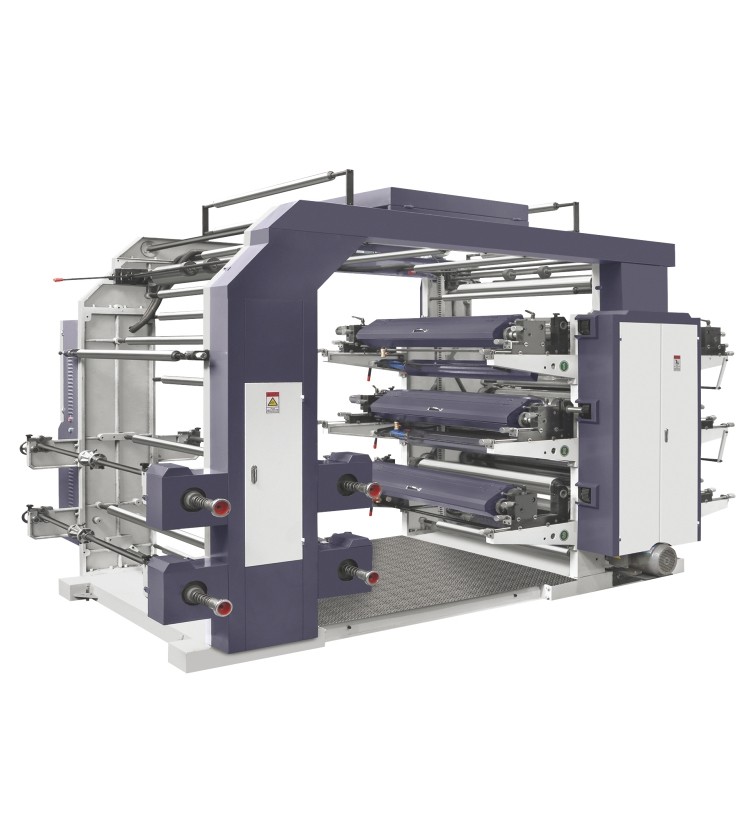

Stack type flexo printing machine, also sometimes called a build-up flexo printing machine. The independent printing units are stacked on top of each other, arranged on one or both ends of the main wall panel of the printing press, or the printing units of various colors are installed on the rack. Each printing unit is turned by gears mounted on the main wall panel. Stack flexo printer can print 1-8 colors, but usually 6 colors.
Description:
Stack type flexo printing machine, also sometimes called a build-up flexo printing machine. The independent printing units are stacked on top of each other, arranged on one or both ends of the main wall panel of the printing press, or the printing units of various colors are installed on the rack. Each printing unit is turned by gears mounted on the main wall panel. Stack flexo printer can print 1-8 colors, but usually 6 colors.
The machine is consist of below parts: unwinding part, rewinding part, printing part, drying system part as well as control system part.
Sample collection:
Specification:
Machine Model | SUST-600 | SUST-800 | SUST-1000 | SUST-1200 |
Material feeding width | 600mm | 800mm | 1000mm | 1200mm |
Max Printing Width | 560mm | 760mm | 960mm | 1160mm |
Printing Colors | 2 colors, 4 colors, 6colors, 8 colors for your option | |||
Unwinder Material | Film (bopp, pe, hdpe, ldpe, foil), paper, non-woven fabric etc | |||
Printing length | Standard is 400mm, Customized is available from300-900mm | |||
Maximum machine speed | 80m/min | |||
Working speed | 20-60m/min | |||
Structure type | Stack type | |||
Heating method | Electricity heating | |||
Unwinder/rewinder paper core | core 3＂ | |||
Max.unwinder/rewinder dia. | 1000mm | |||
Suitable Ink | Water based ink / Solvent ink | |||
Machine weight | 4500kg 5000kg 5500kg 6800kg | |||
Machine size | 4.5m*1.6m*2.2m 4.5m*1.8m*2.2m 4.5m*2.0m*2.2m 4.5m*2.3m*3.2m | |||
Power supply | 380v/3phase/50hz | |||
For more machine models or detailed information, please contact info@sundeep.cn, whatsapp/wechat +86 13375778695

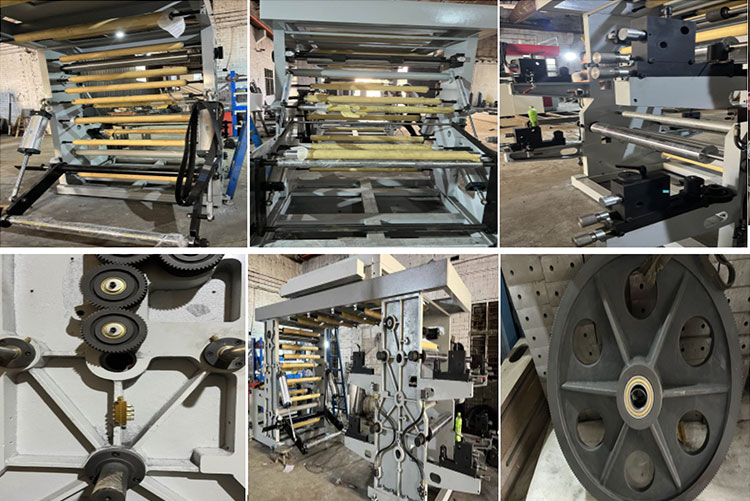

Machine assembling:
Advantage of flexo printing machine：
1）Easy to change the plate
2) Small space required
3) Environment friendly
4) Diverse printing products

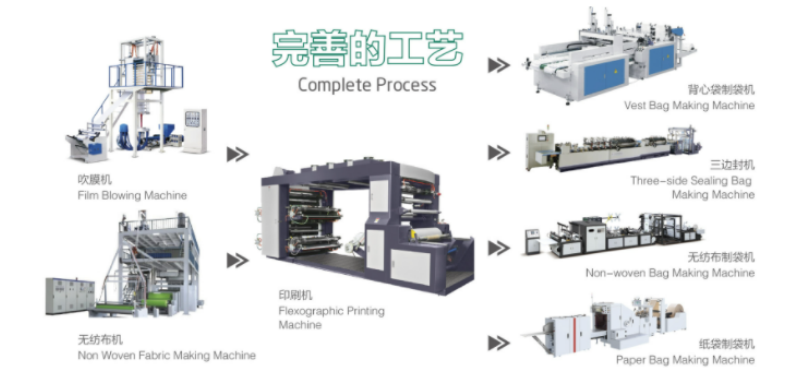

One photo take you understand how printing line works:
