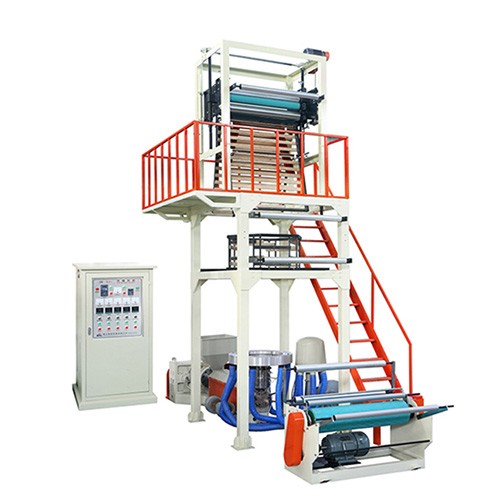

SUND series high speed blown film extrusion machine

The machine applies granule raw materials as LDPE, HDPE and LLDPE to make blown film, the finished film is widely used for making food, fruit, clothing, textile, vest type bag and etc, which is the most common packing film in daily life consumption.

Description:

Highlight:

1. The screw and barrel are made of 38CrMoAl high quality alloy steel after fine finishing and special treatment, which has high hardness, strong resistance to corrosion, durable service.

2. The die head is plated with hard chrome, of screw mandrel type structure with even and smooth discharging, the blown plastic film has fine finishing; The blower is with even air output.

3. The winding unit adopts pressure friction rewinding or center rewinding, which is driven by torque motor, with even and smooth rewinding and easy roll changing.

Specification:

Machine model	SU45/FM600	SU50/FM800	SU55/FM1000	SU60/FM1200	SU70/FM1500	SU80FM1600	SU90FM2000	SU-90FM2000
Diameter of Screw	45mm	50mm	55mm	60mm	70mm	80mm	90mm	90
Spec. of Die Head	40 -100	60 -130	70 -160	90 -200	110 -250	200 -300	400 -500	400 -500
Folding width of Products(mm)	100 -600	100- 800	100- 1000	100- 1200	200- 1500	200- 1600	200- 2000	200- 2000
Main power(kw)	11.5kw	18kw	22kw	22kw	22kw	30-37kw	37-45kw	37-45kw
Max. Output(kg/h)	30kg	35kg	50kg	60kg	80kg	70-100kg	150-180kg	180kg
Machine Weight	1.6tons	1.8tons	2.0tons	2.2tons	4tons	4.5tons	6.0tons	6tons
Machine size	3.6x1.5 x3.5m	4x1.9x3.8m	4.1x2x4.3m	4.2x2x4.5m	5x 2.7x 5.5m	5.3x 2.9x 6m	7x 3.3 x 7.5m	7x 3.3x7.5m

For more machine models(double layer coextrusion, three layer coextrusion etc) or detailed information, please contact info@sundeep.cn, whatsapp/wechat +86 13375778695

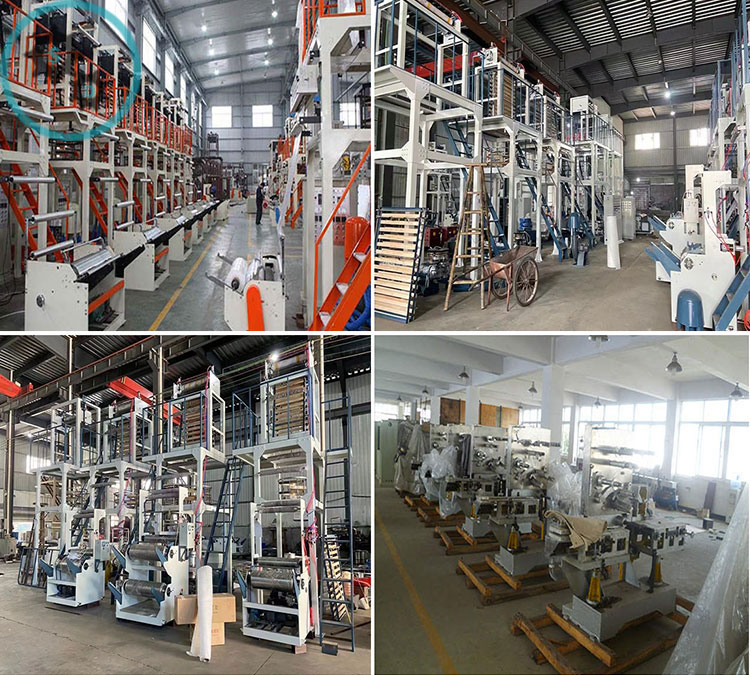

Workshop photo collection:
