The machine applies granule raw materials as LDPE, HDPE and LLDPE to make blown film, the finished film is widely used for making food, fruit, clothing, textile, vest type bag and etc, which is the most common packing film in daily life consumption.
Specification:
Machine Model | SUHQ-450*2 |
Suitable Material | Plastic PE film(Main material: HDPE Film)/Biodegradable Film |
Bag Type | T-shirt bag |
Maximum Cutting width | 400mm*2 |
Maximum Cutting length | 650mm |
Maximum Capacity | 250pcs/min*2 (Biodegradable maximum 180pieces*2/min） |
Voltage Support | Single Phase,220V, 50Hz |
Machine weight | 1600kg |
Machine size | 6.5m*1.9m*1.8m(L*W*H) |
Unwind part | |
Unwind rack | 2 film rolls |
Film load way | Pneumatic cylinder |
Auto tension | With |
Unwind shaft | Air shafts |
Unwinding film photoelectric | 2 pieces |
Main sealing & cutting part | |
Main Motor | 1.5kw with inverter control Made in China |
Driver motor | 1.5kw ,Double Servo Motor with driver control Made in China |
Cutting knife heating | Electric heating |
Color Tracking | 2 pieces for double lines printed bags |
Controller | 1 set ,Screen touch ,Made in China |
Breaker | CHNT |
Blocking electric eye(sensor ) | Made in China |
No material protection electric eye( sensor ) | Made in China |
Static Eliminator | 1 set |
Electrostatic rod | 1 piece |
Blow solenoid valve | Made in China |
T-shirt shape Punching part | |
Punching | Automatic, 2 pieces Cylinder |
Punching controller | 1 set ,Screen touch ,Made in China |
Electromagnetic Valve | AirTAC |
Voltage Regulator | Made in China |
Bag collection | Belt conveyor |
Waste collection | Belt conveyor |
For more machine models or detailed information, please contact info@sundeep.cn, whatsapp/wechat +86 13375778695

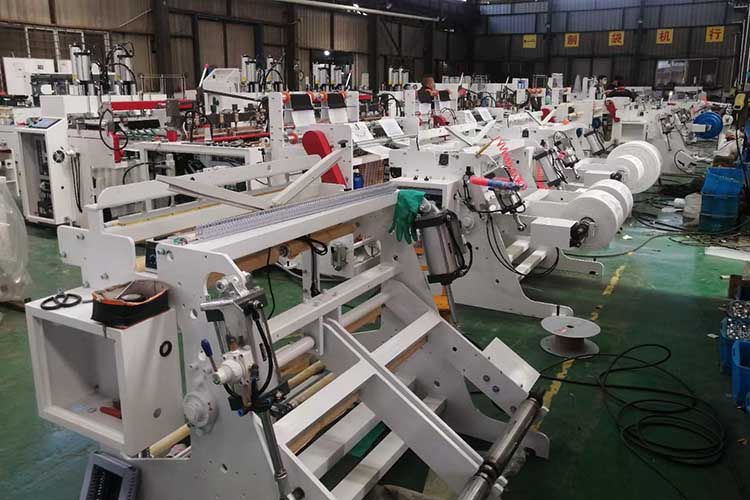

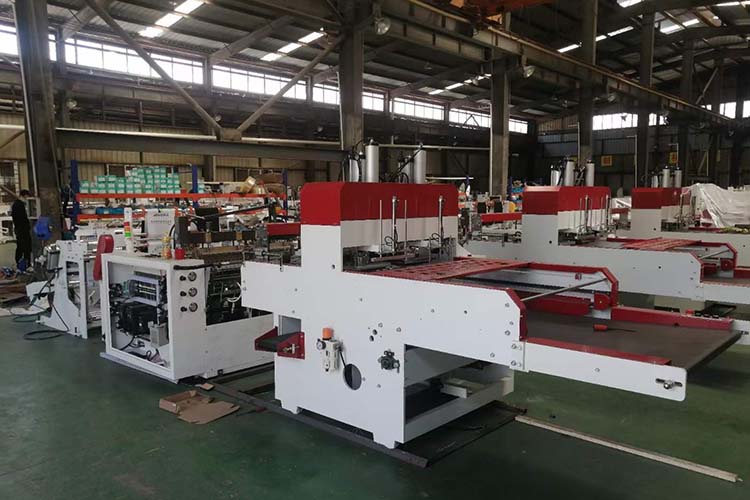

Workshop collection:
