SUND series computer control hot cutting & side sealing bag making

Use:

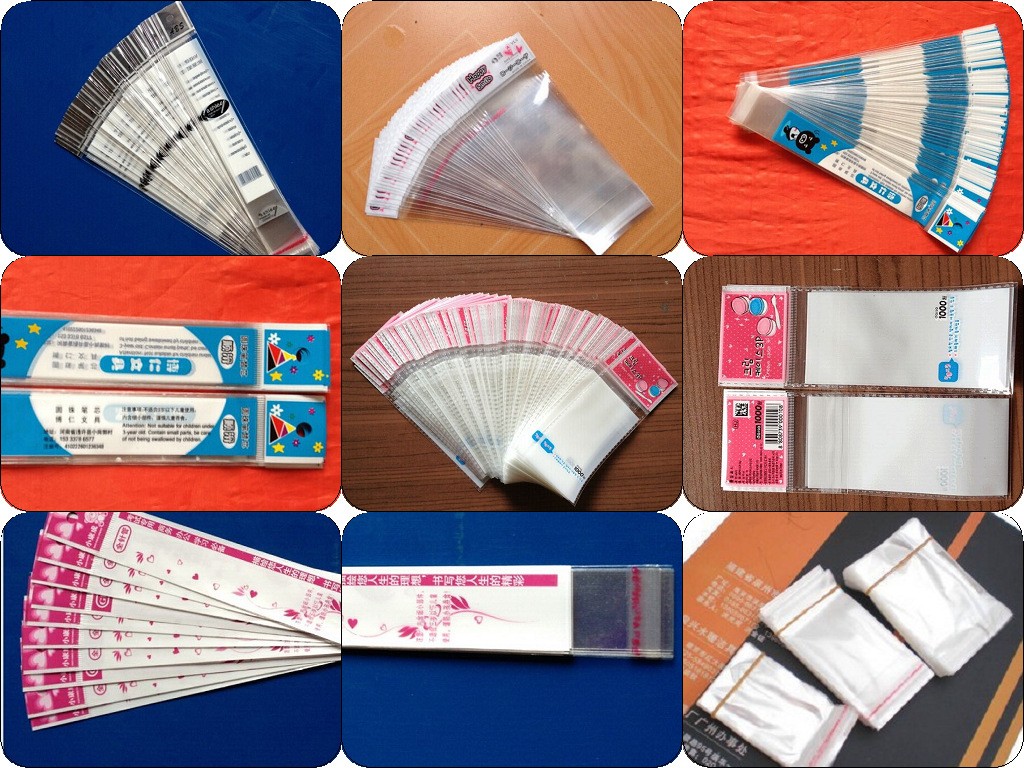

It is suitable for hot-cutting & side-sealing all kinds of natural color films and color films such as: BOPP, OPP, PE etc. It can make normal type, pillow type and envelope type.

Characteristic:
1.The main motor adopts frequency conversion motor to adjust the speed .
2.It adopts microcomputer to control, servo motor to pull material,which will accurate the sealing and cutting location .Automatic counting and settable counting alarm.The machine will stop automatically when the color mark is lost.
3.Feeding by DC motor and film potentiometer add the synchronization between feeding and main motor .
4. The sealing and cutting blade is a kind of special tool steel,uneasy deformation .
5.The conveyor belt adopts the imported driven strap and DC motor to adjust the speed ,which make the process of receiving bags steady and reliable .
6.It adopts pneumatic equipment to punch. Rubberizing simultaneously.

Main Technical Parameters:
Model :SUND-BF650

Producing Width: 50-600mm
Producing Length:100-600mm
Producing Speed：30-120 (pcs/min)

Thickness of Film：0.01-0.10mm
Main Power：4.5kw
Machine weight：1100kg

Power supply: 380v/3phase/50hz
Overall Dimensions (L*W*H)：4700*1250*1850mm
Packing Dimensions (L*W*H): 3000*1400*2050mm

Optional parts:

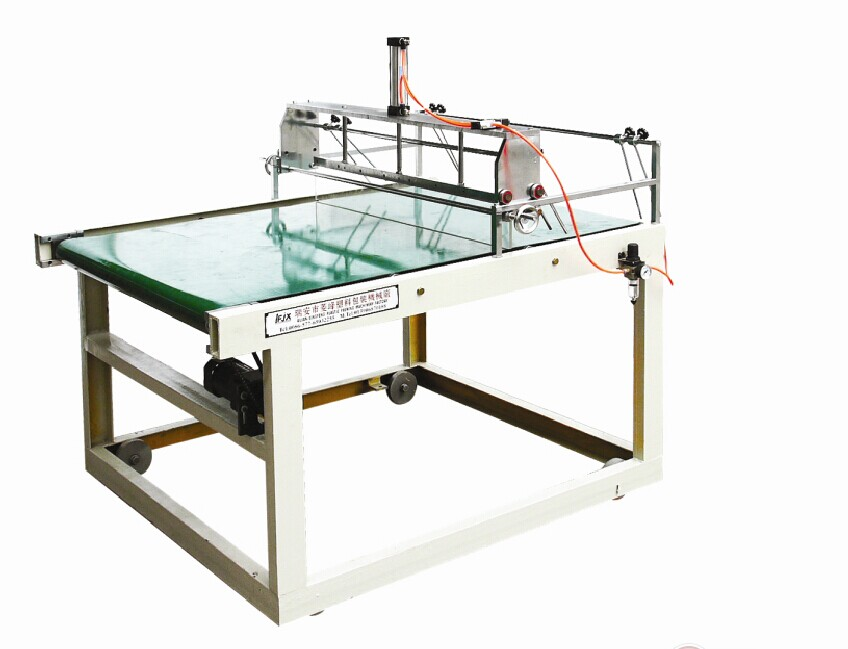

1) Automatic Conveyor

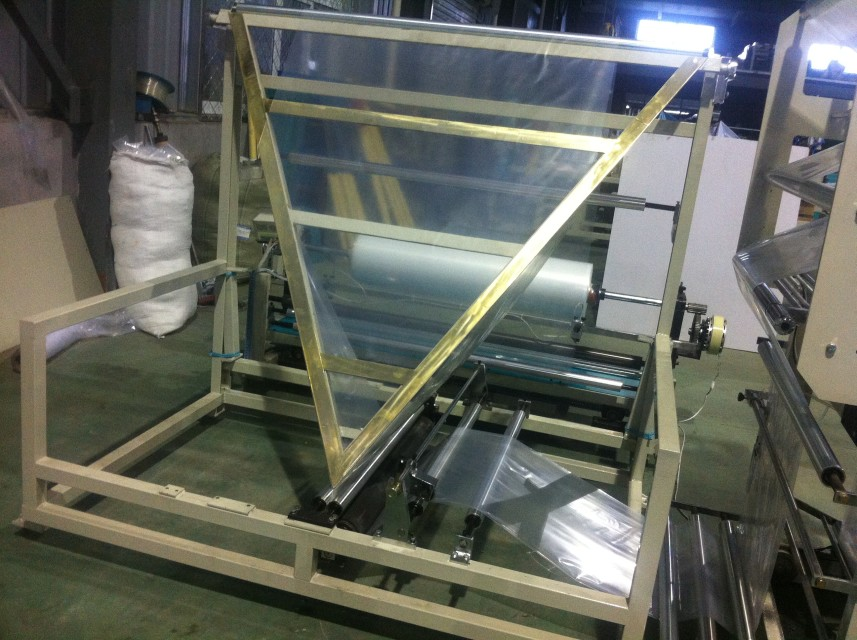

2) Triangle Folder

3) EPC system

4) Butteryfly hole and ultrasonic device
