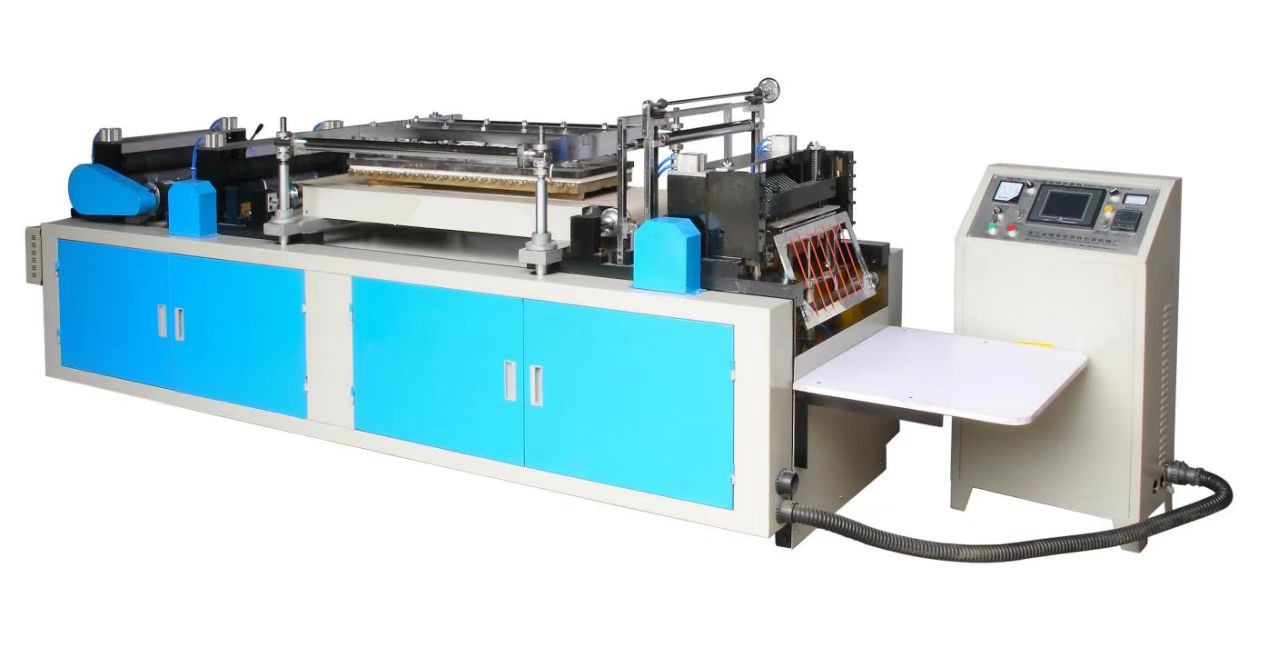

Long sleeve PE glove machine is suitable for producing gloves with HDPE(high density polyethylene).It adopts microcomputer to operate. The operation of this machine is simple. It runs at high speed with low noise.

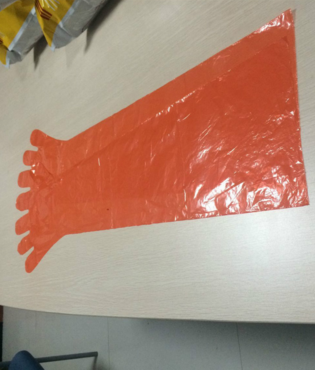

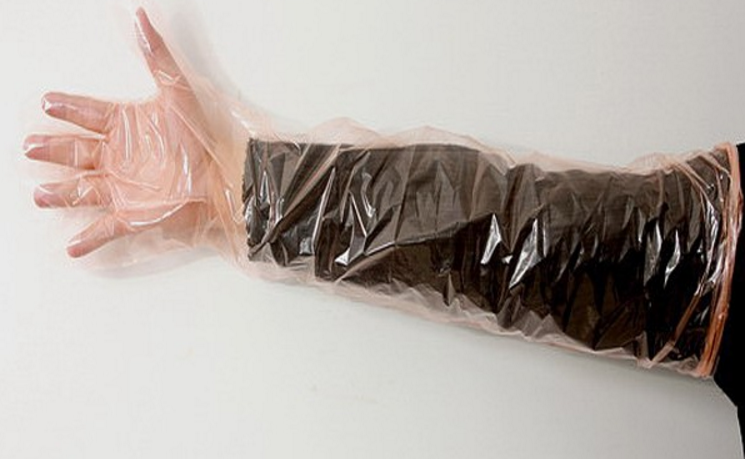

The disposable veterinary glove is used for midwifery, artificial insemination etc.
SPECIFICATION:
Machine Model | SUND-LG1000 |
Glove Length | 1000 mm |
Max unwinding diameter | ￠600mm |
Film thickness | 0.02-0.08mm |
Producing Speed | 30-50 pcs /minute |
Total Power | 13.5Kw |
Power Source | 380 V ，3 Phase 4 Wire，50HZ |
Machine Weight | 1200Kg |
Overall dimensions(L*W*H) | 3500×1250×1550mm |

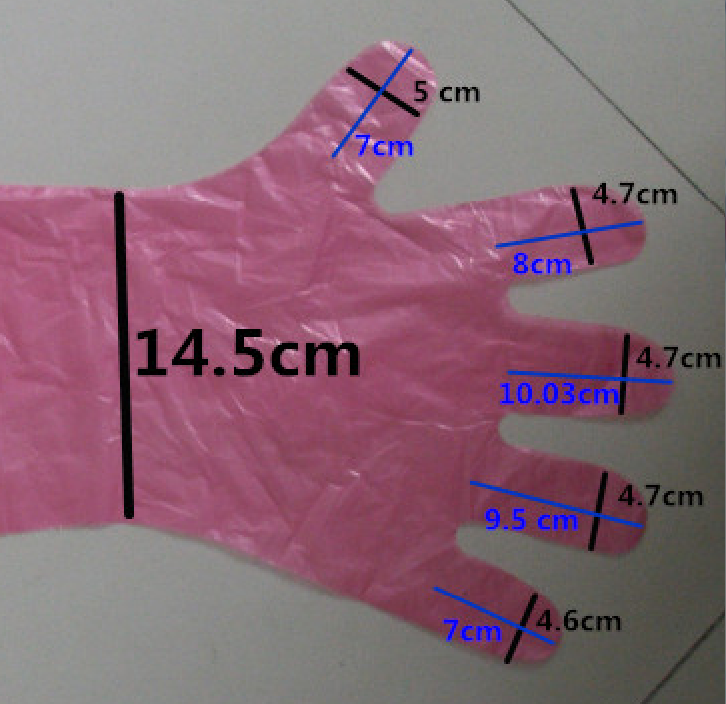

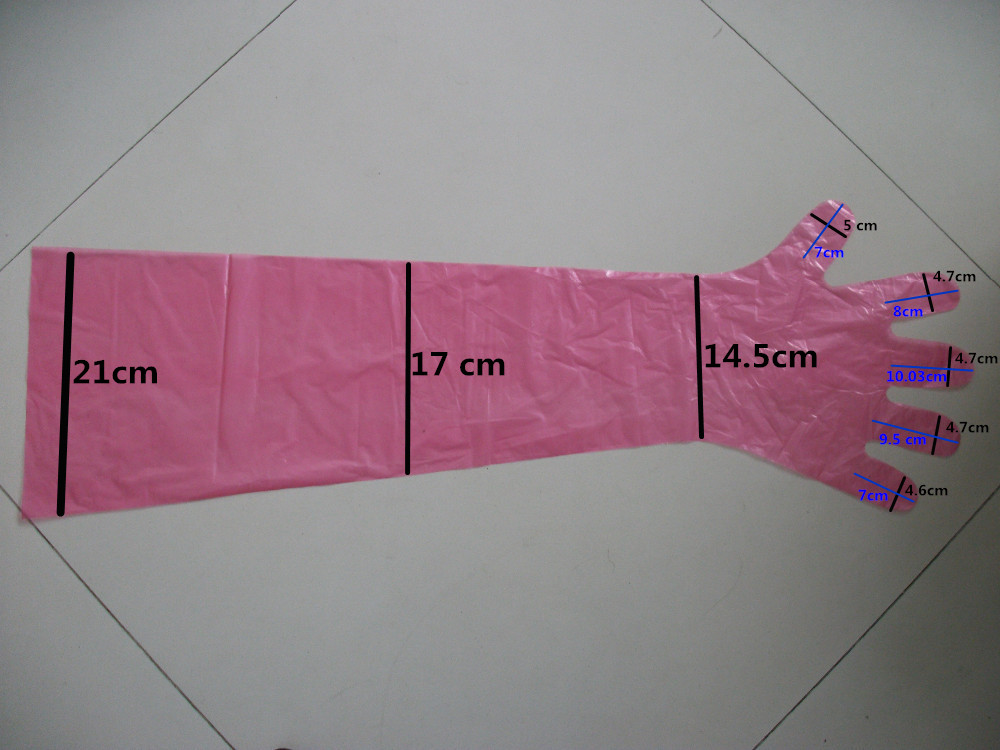

GLOVE SIZE FOR REFERENCE:
MAIN CONFIGURATION LIST:
NO. | Description | Qty | Origin
|
1 | 370W Discharging motor | 1piece
| Shanghai |
2 | 600W Discharging speed regulating board | 1sets
| Shanghai |
3 | Discharge photoelectricity (adjustment distance 2m) | 1piece
| Shanghai |
4 | 2.5KW Main motor | 1piece
| Shanghai |
5 | 2.5KW Frequency converter | 1piece
| Panasonic frequency conversion |
6 | DC2002A LCD Microcomputer | 1piece
| WuXi |
7 | Three phase hybrid driver | 1set
| WuXi |
8 | 350B Stepper motor | 1piece
| WuXi |
9 | Temperature controller | 1piece
| YuYao |
10 | Glove mold | 1piece
| Select targeted high-quality copper, and go through several high-density treatments. Heating pipe: made of imported materials. |
