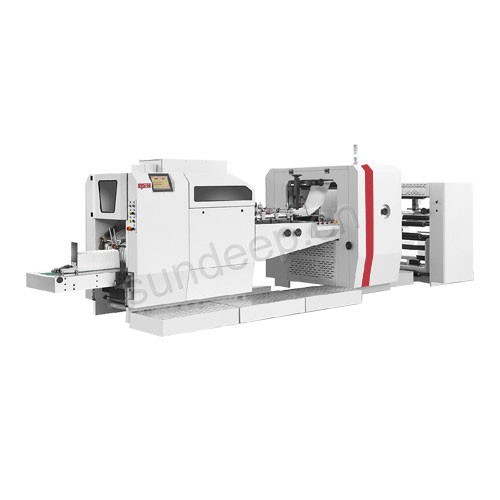

This machine applies varied primary and printed rolling paper, such as Kraft paper, ribbed kraft paper, grease-proof paper, coated paper,medico paper and so on to make sharp bottom paper bag (also called V shape paper bag).
Description:
This machine applies varied primary and printed rolling paper, such as Kraft paper, ribbed kraft paper, grease-proof paper, coated paper,medico paper and so on to make sharp bottom paper bag (also called V shape paper bag).
The machine consist of below parts: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively.

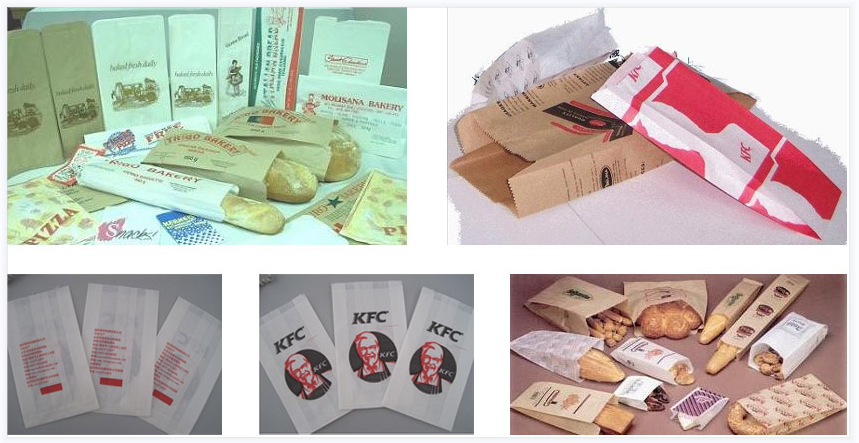

This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag, eco-bag and so on.
Highlight:
√ Available Germany LENZE human-computer touch screen,it is easy to operate and control.
√Available Germany LENZE motion controller(PC), integrated with optical fiber,ensure the machine with high speed steadily.
√ Available Germany LENZE servo motor integrated with Germany original SICK rectifying photo sensor, ensure the printed paper length under tracking precisely.
√ The loading and unloading of the raw materials adopts the hydraulic automatic lifting structure, and the full automatic tension control is adopted for the reel.
√ Available Italy SELECTRA material edge rectify system, substantially cut off the edge alignment time
Specification:
Machine model | SUJD-G350 |
Length of cutting bag | 165-715mm |
Bag length | 160-715mm |
Bag width | 70-350mm |
Paper width | 200-920mm |
Paper roll diameter | Φ1000mm |
Paper core diameter | Φ76mm |
Paper thickness | 35-80g/m2 |
Insert size | 20-120mm |
Bag mouth height | 15/20mm |
Production speed | 50-650pcs/min |
Machine power | 380v 3phase5wire,27.1kw |
Machine weight | 6500kg |
Machine size | 7300x3000x2200mm |
Power supply | 380v 3phase 50hz; 27.1kw |
Sharp bag drawing |
For more machine model, please contact info@sundeep.cn or whatsapp/wechat +86 13375778695

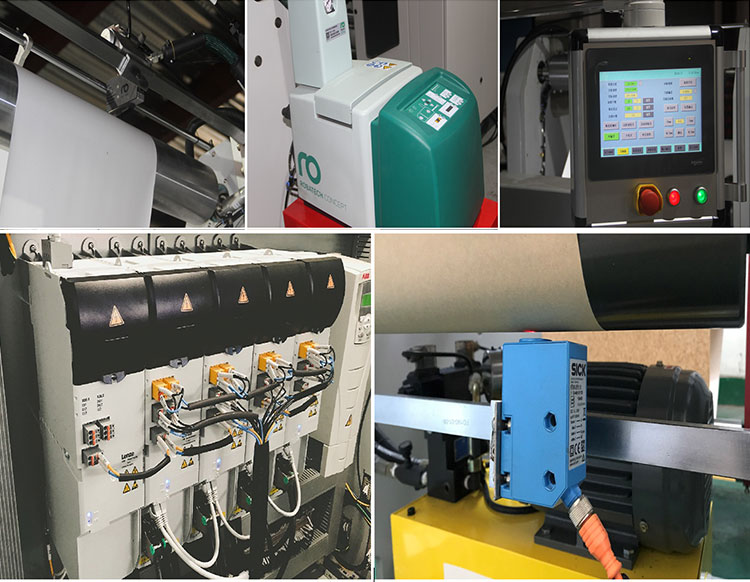

Machine parts in details:
