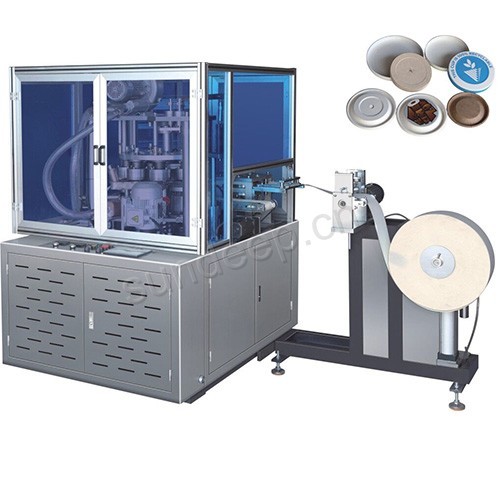

SUND-100 paper lid machine is our new equipment, the equipment including automatic paper feeding, embossing, punching, conveying, heating, creasing, knurling, rolling out, counting functions. Also the machine can connect with the packing machine to do fast online packing.
Description:
SUND-100 paper lid machine is our new equipment, the equipment including automatic paper feeding, embossing, punching, conveying, heating, creasing, knurling, rolling out, counting functions. Also the machine can connect with the packing machine to do fast online packing.
Specification:
Machine model | SUND-100
|
Suitable paper | One/two side pe coated paper,glossy coated paper (25-350gsm)
|
Molding size |
Height :Φ 8 - 15 mm; diameter : Φ 55-90mm
|
Production speed |
70-100 pcs/min |
power |
10kw |
Air consumption |
air consumption 0.2 cubic meters/min, working pressure 0.4MPA |
Working voltage |
380V/3 Phase/50HZ
|
Machine size
|
L x W x H: 2600x1500x1800(mm) |
Machine weight | 2500kg |
