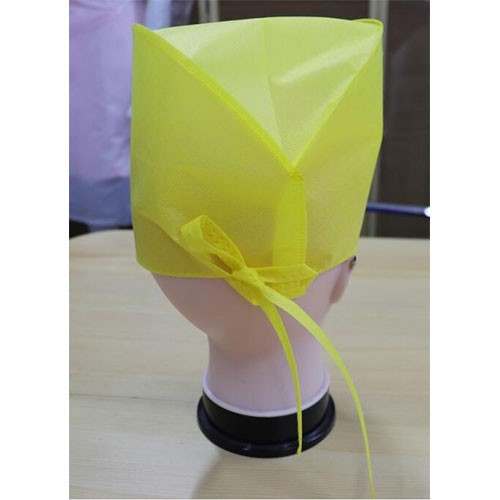

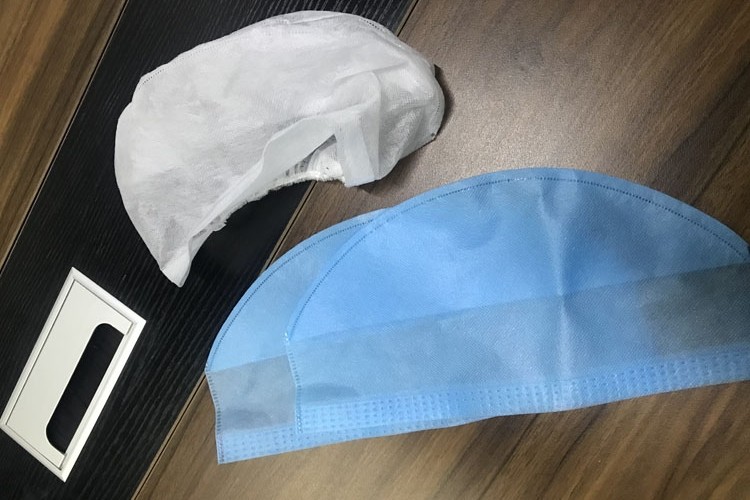

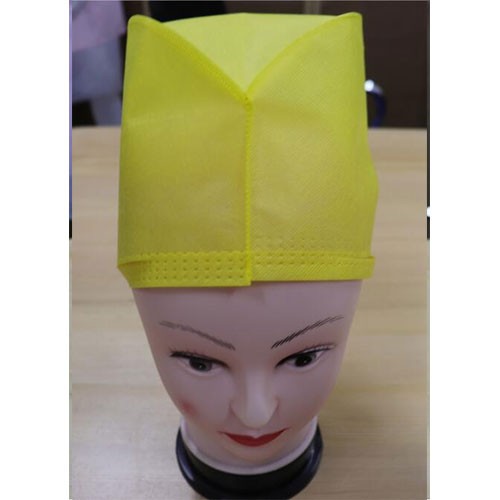

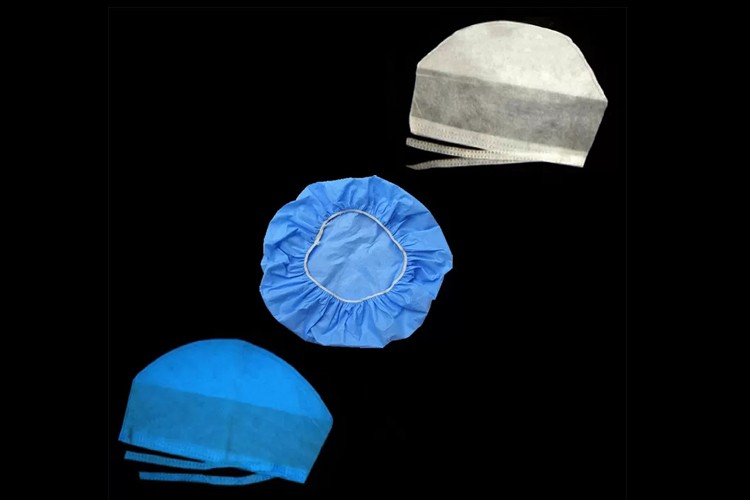

The doctor cap making machine is designed to produce disposable surgical doctor cap, it can do both elastic type cap and tie type cap, while making cap with elastic, the input fabric width is 530mm, while making cap with tie, the input fabric width is 550mm.
Production process as: Raw material feeding-> Folding -> Ultrasonic welding-> Doctor cap forming->cutting & conveying.
Description:
The doctor cap making machine is designed to produce disposable surgical doctor cap, it can do both elastic type cap and tie type cap, while making cap with elastic, the input fabric width is 530mm, while making cap with tie, the input fabric width is 550mm.
Production process as: Raw material feeding-> Folding -> Ultrasonic welding-> Doctor cap forming->cutting & conveying.

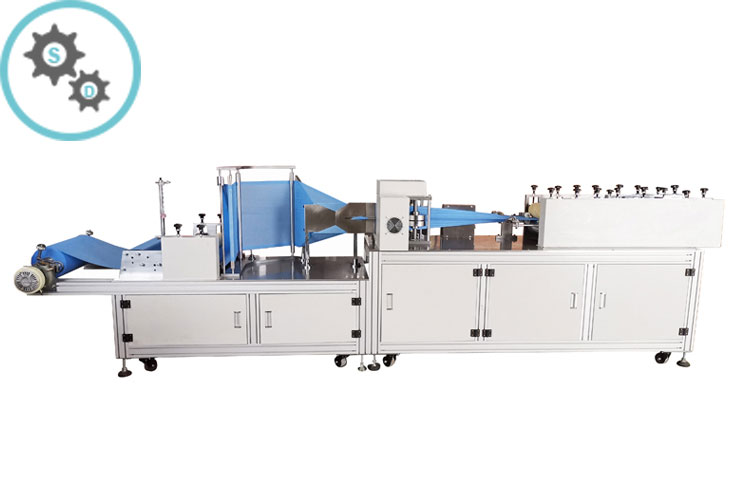

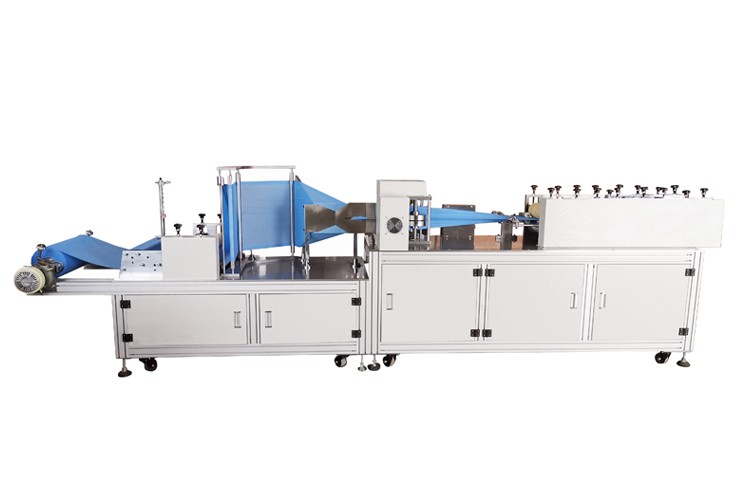

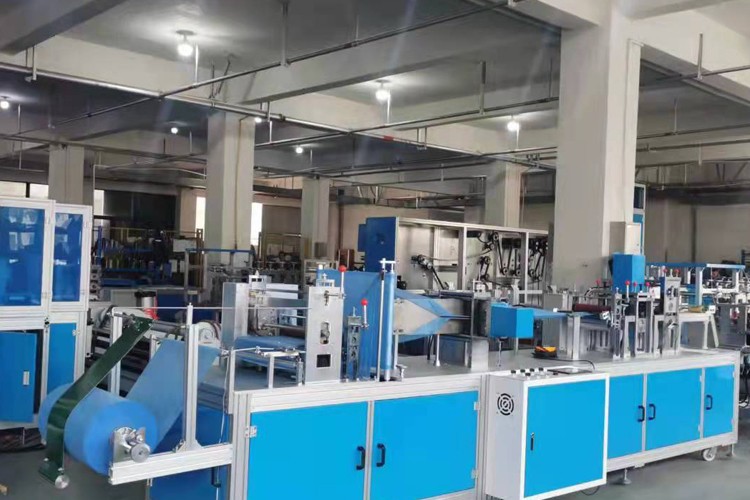

Machine photo:

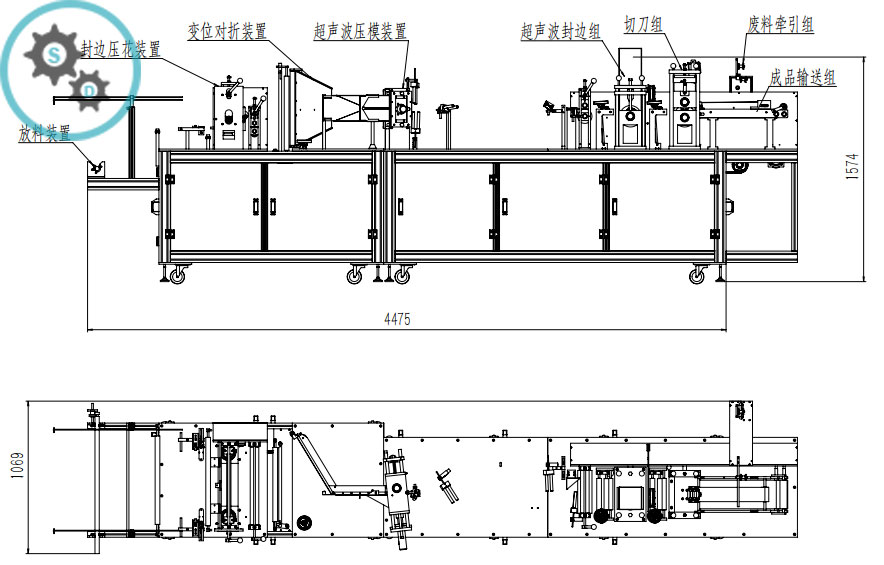

Machine Layout drawing:
Specification：
Machine model
| SUN-DC350 doctor cap making machine |
Production Capacity | 60-180 pcs/min
|
Power consumption | 9.5kw |
Machine size
| 4680*1050*1500mm (L*W*H)
|
Package size
| 2600*1150*1750mm(L*W*H) 2280*1150*1600mmm (L*W*H) |
Machine weight
| 1800KG
|
Power supply | 220v/380v/60hz |

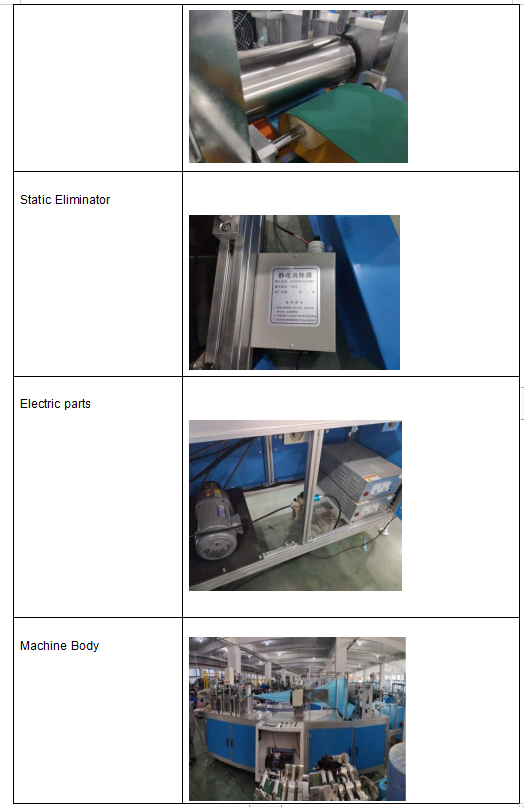

Machine main parts:
