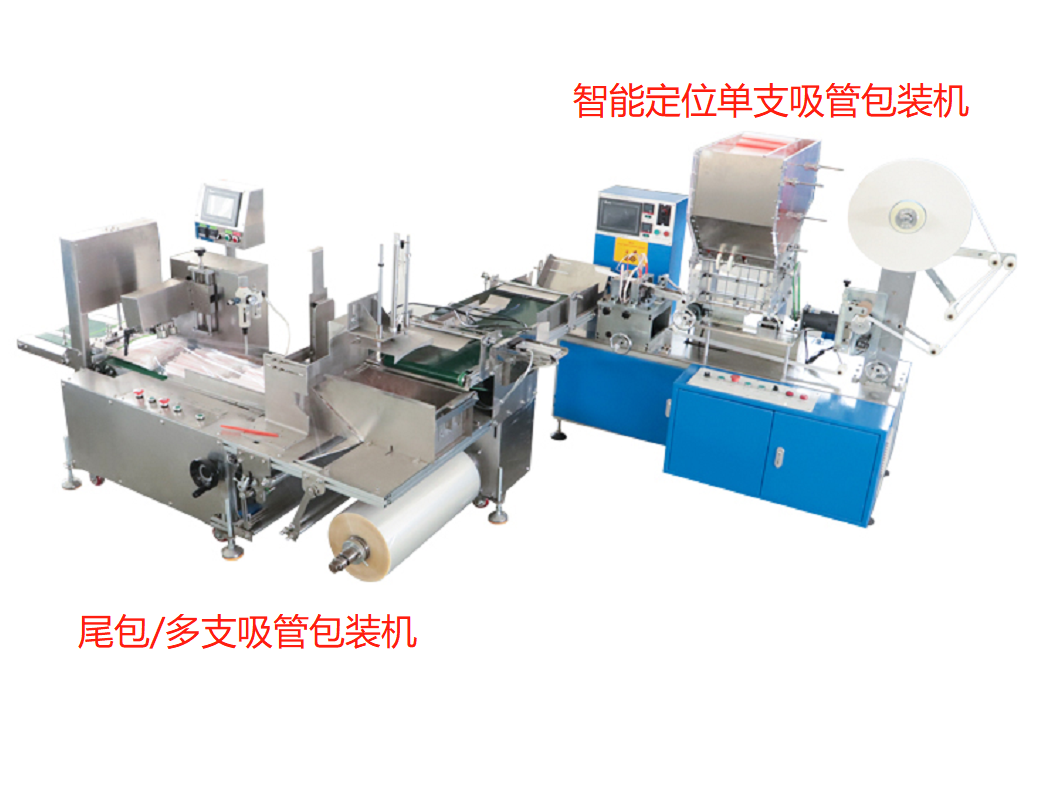

SUND-031 series Individual Straw Packing Machine + SUND-42 series Group Straws Packing Machine inline

Drinking Straw Packing Machines(inline) consists of two parts: Individual straw packing machine and Group (Multiple) straws packing machine.
Individual straw packing machine with eye sensor, upgraded as SUND-031 series, integrates the advantages of high speed and printing function machines with high efficiency and automation degree. The straw length can be adjustable in a certain range. No need to change moulds for different diameter and length.

Description:

Drinking Straw Packing Machines(inline) consists of two parts: Individual straw packing machine and Group (Multiple) straws packing machine.

Individual straw packing machine with eye sensor, upgraded as SUND-031 series, integrates the advantages of high speed and printing function machines with high efficiency and automation degree. The straw length can be adjustable in a certain range. No need to change moulds for different diameter and length.

SUND-42 series Group(Multiple) Straws Packing Machine can pack multiple quantities straws into film bag automatically.

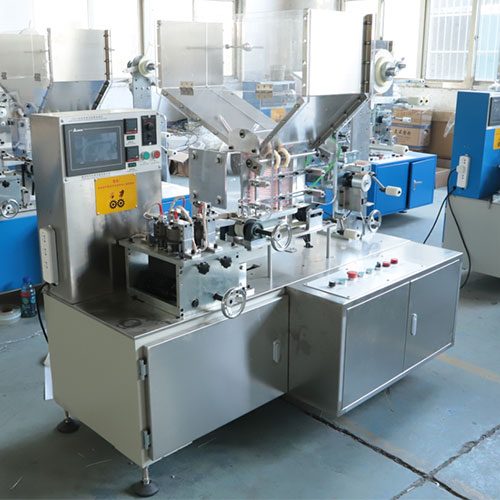

SUND-031 Individual straw packing machine overview:

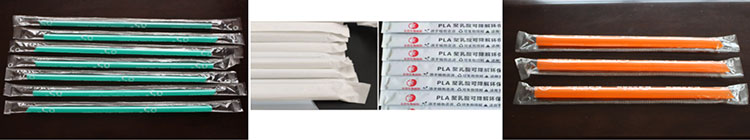

Individual packing sample:

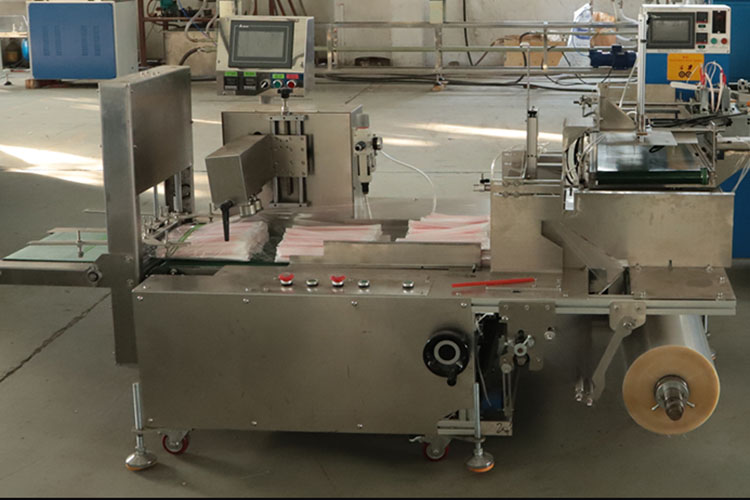

SUND-42 Group(multiple) straws packing machine overview:

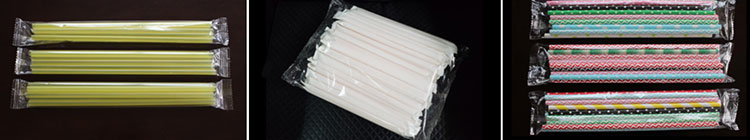

Group packing sample:

Specification:

Machine Model

SUND-031 individual packing + SUND-42 group packing

Power Supply

1P/220-240V/50HZ; 4kw

Production Capacity

25,000-30,000pcs/hour

Packing method

3 sides sealing with paper first, then film packed bulk

Packing material

Paper/BOPP or PLA/PBAT film

Straw Spec.

O.dia.:Φ5mm~12mm; length 140-250mm

Line Size /L×W×H

1.7m*1m*1.6m(individual packing)

2.2*1.8m*1.4m(group packing)

Line weight

500 kg+500kg

Highlight:

1. Using PLC, Touch Screen and Servo Systems with electric eye sensor tracking function; straw sizes can be ranged from Dia.5-12mm*length 140-250mm, no need to change sealing molds.(just insert straw information, machine will adjust the parameter automatically)

2. With precise transmission part for energy-saving and high efficiency;

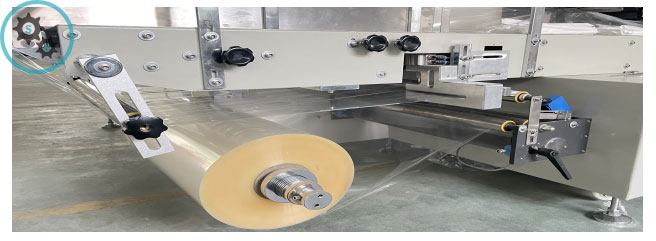

3. Automatic tension control by Magnetic particle clutch for compact packages.

Machine parts in details:

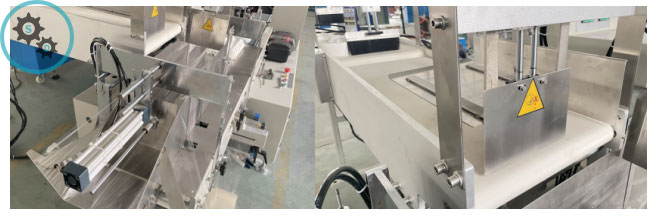

1)Conveyor for straw transmission from outlet of individual straw packing machine

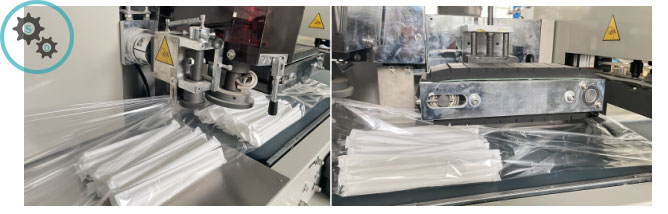

Air Cylinder push the bulk straws to move and collect, and get ready for packaging
